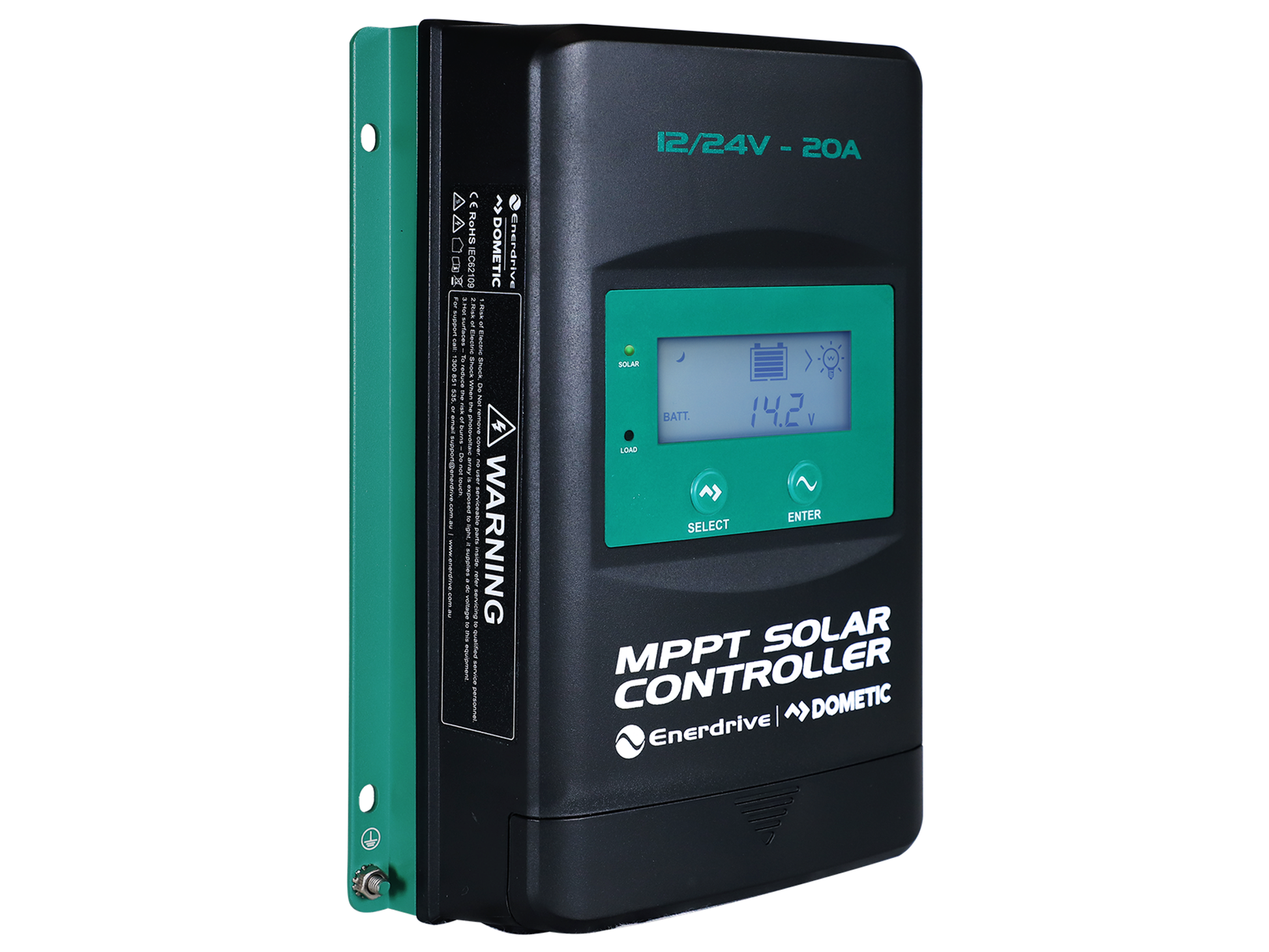

The Enerdrive | Dometic MPPT Solar Controllers adopt the advanced MPPT control algorithm, it can minimise the maximum power point loss rate and loss time, quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilisation in the solar system by 20%-30% compared with PWM charging method.
The Enerdrive MPPT Solar Controllers has self-adaptive three-stage charging mode based on digital control circuit, which can effectively prolong the lifespan of batteries and significantly improve the system performance. It also has comprehensive electronic protection for overcharge, over discharge, PV & battery reverse polarity. This controller can be widely used for RV, Marine, remote off grid monitoring and many other applications.
IP33 Ingress protection and isolated RS485 design further improves the controller’s reliability and meet the different application requirements.
Enerdrive MPPT Solar Controller Features:
CE certification (LVD EN/IEC62109,EMC EN61000-6-1/3)
LCD display
Advanced MPPT technology & ultra-fast tracking speed guarantee’s tracking efficiency up to 99.5%
Maximum DC/DC transfer efficiency is as high as 98.6%.
Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
Accurate recognition and tracking of multi-peaks maximum power point
Wide MPP operating voltage range
Support lead-acid and lithium batteries
Real-time energy statistics function
Power reduction automatically over temperature value
Multiple load work modes
Comprehensive electronic protection
IP33 Ingress protection
Comms port included for future applications
FINAL SALE FOR CHANGE-OF-MIND PURPOSES - This is a clearance item with limited availability. Returns and exchanges are not accepted for change of mind or where the customer independently selects an incorrect part or vehicle fitment and the product supplied matches the listing. Please confirm compatibility before purchasing. If you are unsure, contact us with your vehicle model, build year, engine and body style before placing your order. Your rights under the Australian Consumer Law are not affected.
