Ford Ranger Next Gen Suspension GVM Upgrades, Wheels & Tyres
Couldn't load pickup availability

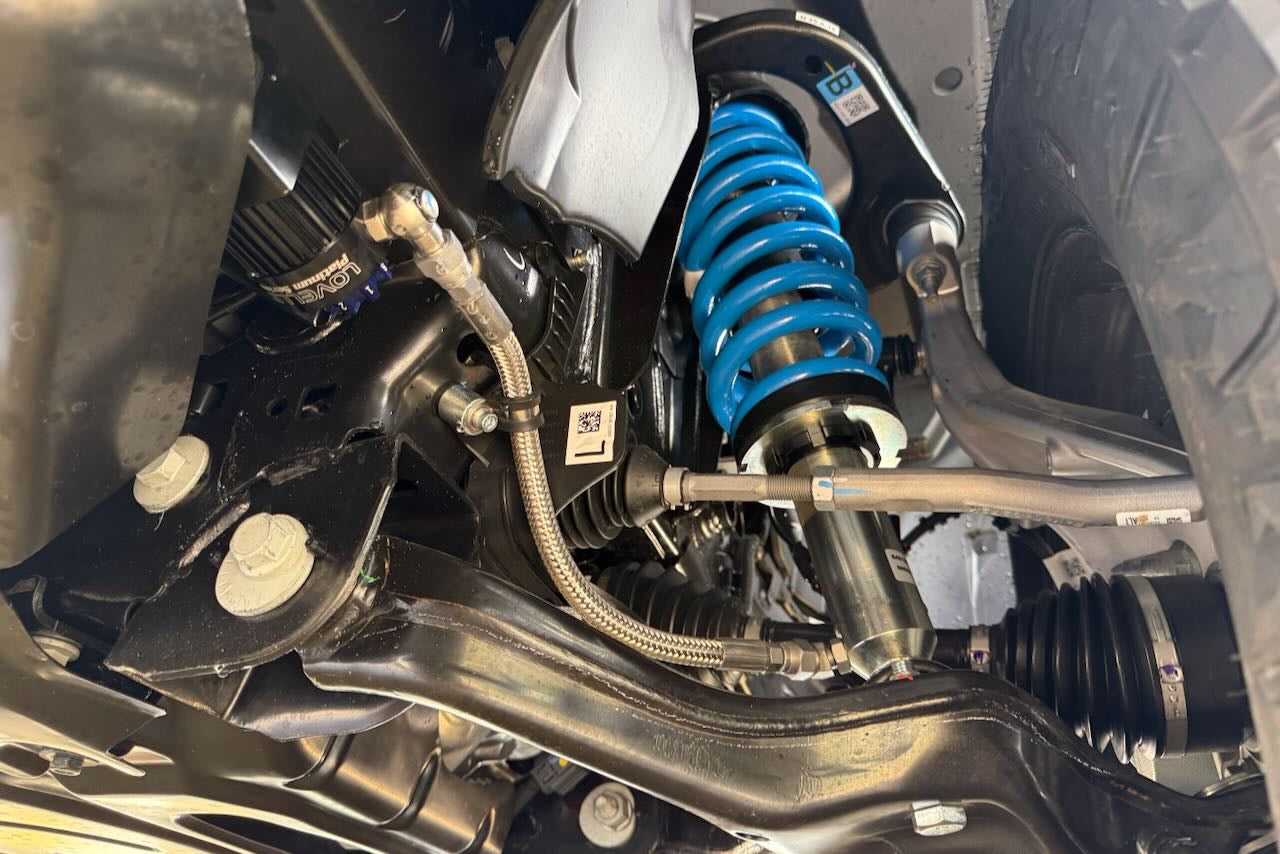

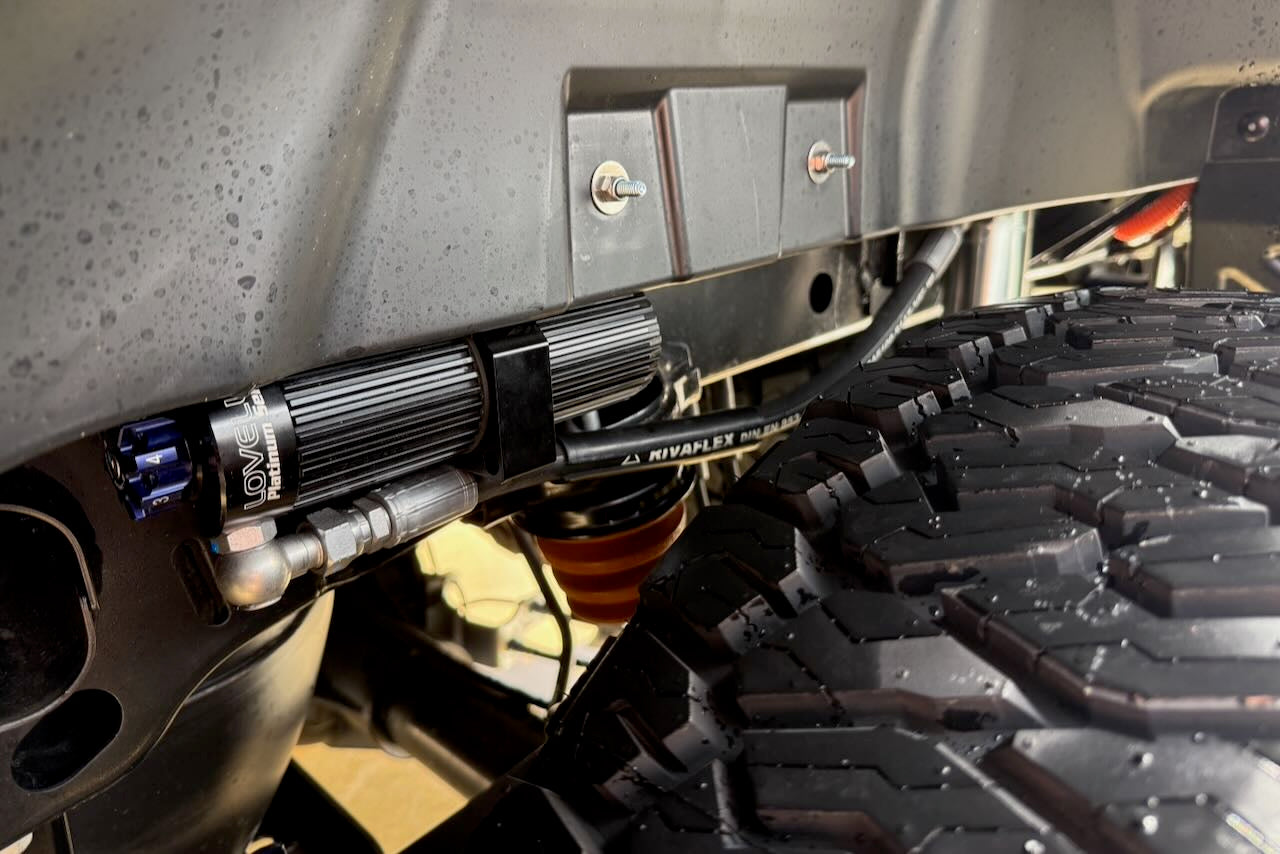

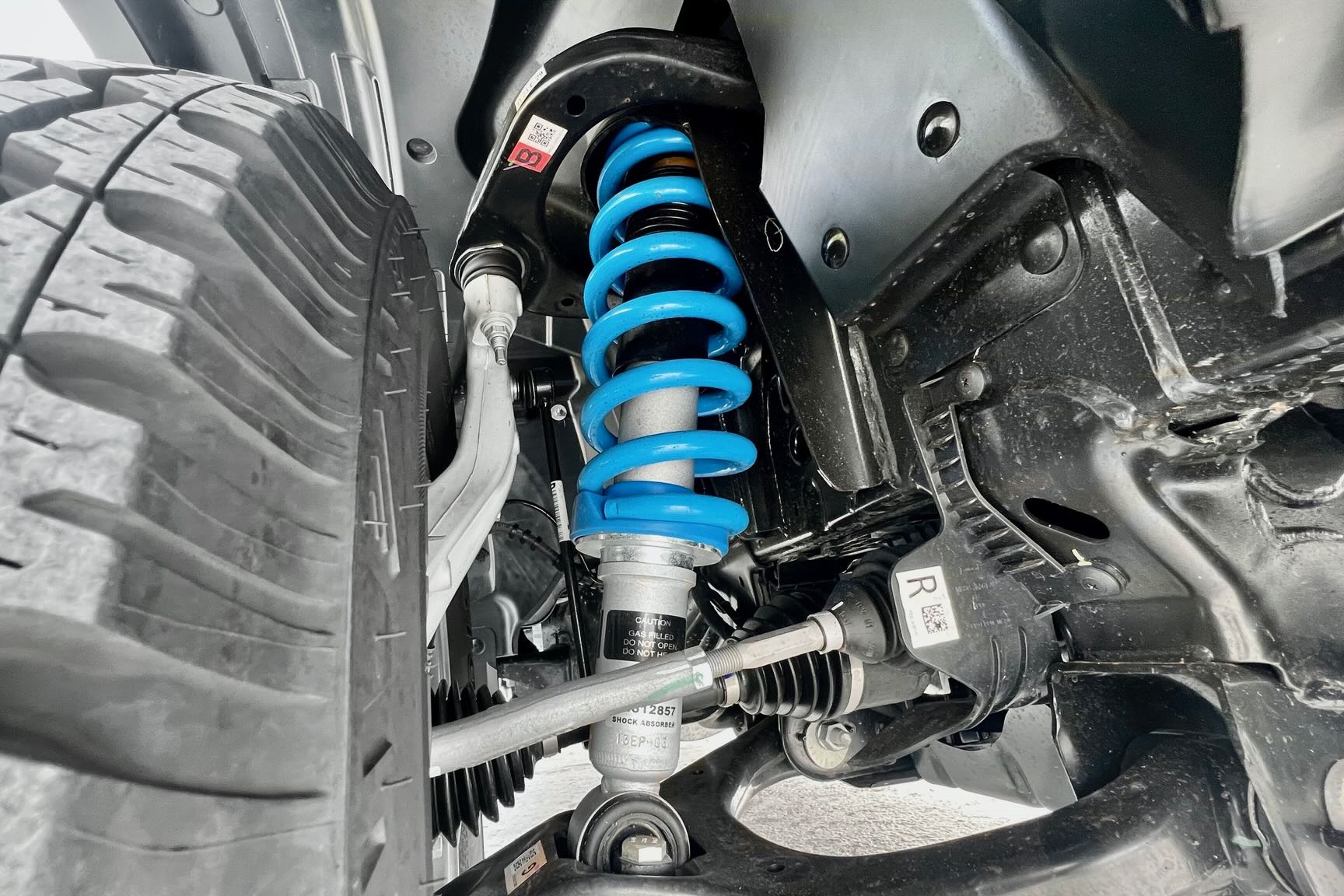

Lovells GVM Upgrade
The Lovells GVM Upgrade increases the vehicle's maximum allowable GVM (Gross Vehicle Mass) to 3505kg or 3700kg. The Platinum Series 4000kg GVM Upgrade is coming soon.
Lovells SSM Approval VTA-061527 for the Ford Ranger GVM Upgrade includes the V6 and 2.0ltr Bi-Turbo 4WD and 2WD.
GCM REVISION is only available for the 3.0 litre V6 Engine.
NO GCM REVISION is available for the 2.0 litre Bi-turbo.
When fitting a Lovells 3505kg and 3700kg GVM Upgrade to these vehicles, the vehicle must have a minimum Tyre Load Index of 110 and a Minimum Speed Rating of T to remain compliant.
The vehicle changes category from NA to NB1 due to the GVM Upgrade. Therefore, Category 6 side indicators must be fitted to ensure ADR13/00 has been addressed.
Lovells 3505kg GVM & GCM Upgrade (Pre-rego)
- Ford GVM 3280kg » Lovells GVM 3505kg
- Ford GCM 6400kg » Lovells GCM 7005kg (V6 only)
- Ford Front Axle Rating 1490kg » Lovells Front Axle Rating 1500kg
- Ford Rear Axle Rating 1959kg » Lovells Rear Axle Rating 2050kg
Lovells 3700kg GVM & GCM Upgrade (Pre-rego)
- Ford GVM 3280kg » Lovells GVM 3700kg
- Ford GCM 6400kg » Lovells GCM 7200kg (V6 only)
- Ford Front Axle Rating 1490kg » Lovells Front Axle Rating 1640kg
- Ford Rear Axle Rating 1959kg » Lovells Rear Axle Rating 2120kg
Lovells 4000kg Platinum GVM & GCM Upgrade (Pre-rego)
COMING SOON
- Ford GVM 3280kg » Lovells GVM 4000kg
- Ford GCM 6400kg » Lovells GCM TBC
- Ford Front Axle Rating 1490kg » Lovells Front Axle Rating TBC
- Ford Rear Axle Rating 1959kg » Lovells Rear Axle Rating TBC
State Compliance GVM Upgrade
Registered vehicles undergoing a GVM upgrade must be presented to an Authorised Inspection Station for modification approval. To proceed, the vehicle must be in roadworthy condition. Our pricing covers the entire process, including the modification application, vehicle inspection, and approval permit.
Note: the Western Australian government has indicated they will allow GCM upgrades post-rego in the future but there is currently no date for this change. Lovells are working closely with the Department of Transport on this approval.
Lovells Upper Control Arms
The Lovells heavy duty replacement upper control arms (UCAs) assist in maintaining proper alignment and suspension geometry. A suspension lift changes the factory angles, which can compromise wheel alignment, suspension travel, and even create premature wear on components. Lovells UCAs are designed with improved geometry to correct these issues, providing increased caster, better clearance for larger tires, and improved articulation for off-road performance.
Airbag Man Air Suspension Helper Kit
The Air Suspension Helper Kit assists by eliminating spring sag when loaded, improving ride comfort, and boosting towing and hauling stability. Adjustable air pressure ensures optimal handling, braking, and ground clearance.
*Airbag Man - Onboard Controls are only available for vehicles with our drawer systems that have the required space for fitment.

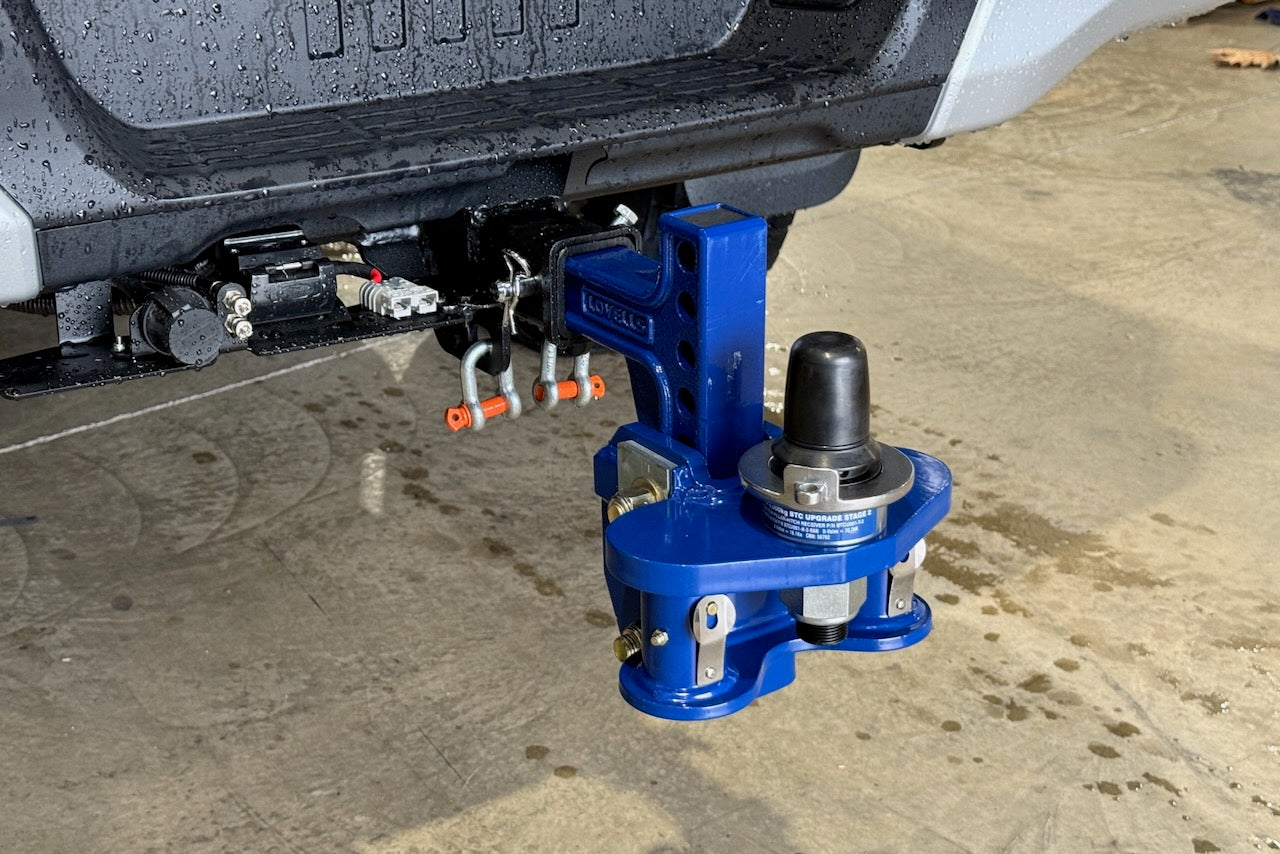

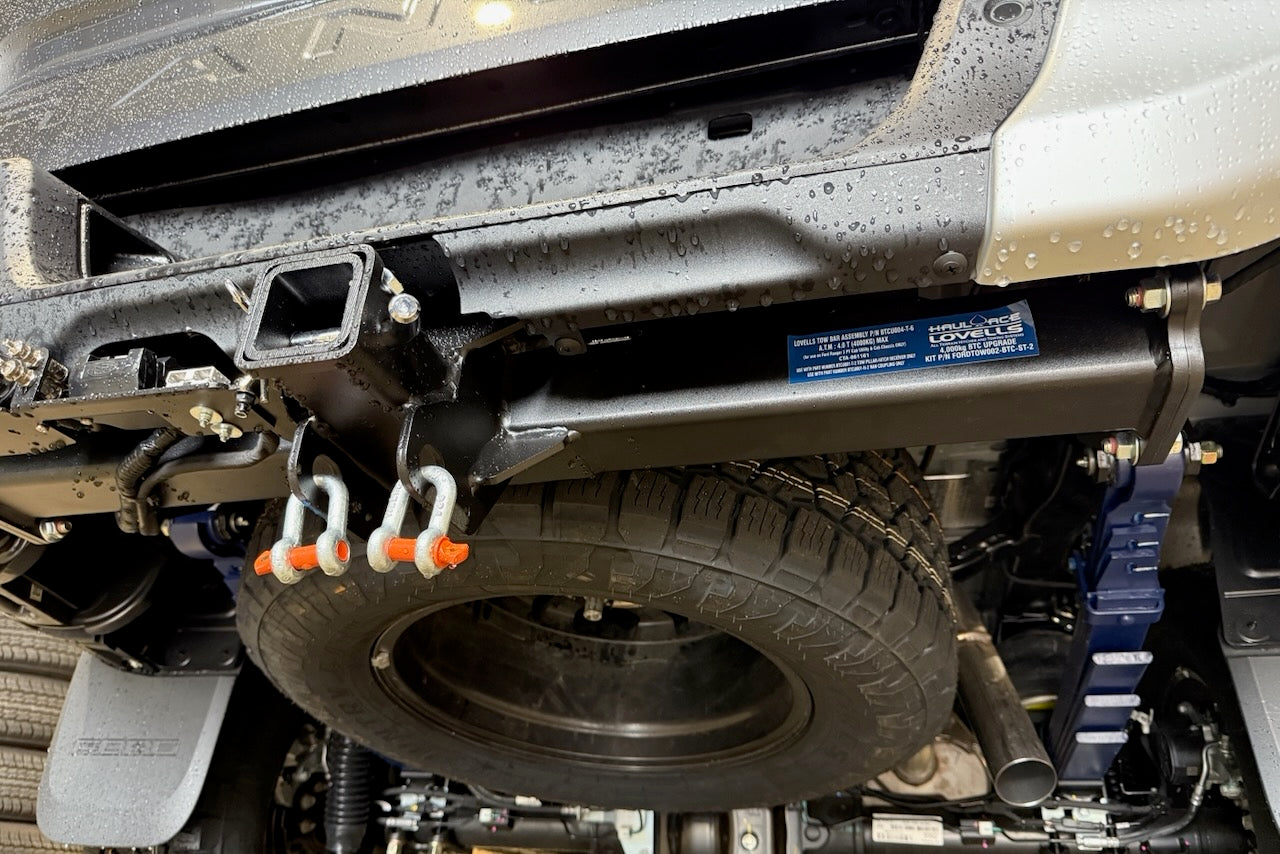

Lovells 4000kg Braked Towing Capacity (BTC) Upgrade
The Lovells Braked Towing Capacity (BTC) Upgrade increases the Ranger's towing capacity from 3500kg to 4000kg, with a maximum Tow Ball Weight (TBW) of 400kg.
- Ford BTC 3500kg » Lovells BTC 4000kg (V6 only, Pre-rego only)
- Ford GCM 6400kg » Lovells GCM 7700kg (V6 only, Pre-rego only)
Lovells SSM Approval VTA-061527 for BTC Upgrade only covers the 3.0L V6 models. 2.0L Bi-Turbo cannot have a BTC Upgrade
The BTC Upgrade kit includes
- Heavy Duty Lovells Haul Ace All Terrain Hitch (Rated to 5.5T)
- Heavy Duty Height Adjustable Hitch Receiver & Tow Pillar
- Weight Distribution System
- Stainless Steel Handbrake Kit
The Lovells BTC Upgrade is only compliant when used in conjunction with the Lovells 3700kg GVM Upgrade or 4000kg GVM Upgrade (coming soon), and utilising only the included BTC kit components. This is because all test data, dynamic testing and ADR compliance were achieved using Lovells parts and design parameters.
Evo Corse Dakar Zero Wheels
The Evo Corse Dakar Zero wheels are the ultimate choice for off-road and touring enthusiasts, offering unmatched strength, style, and performance. Made in Italy and designed for extreme conditions, they feature a high load rating, an optimized anti-puncture profile, and a wide hump for stability at low tire pressures. Finished with a durable three-layer powder coating, these wheels provide exceptional wear resistance while adding a bold, rugged look to your vehicle.
BFGoodrich All-Terrain Tyres
The BFGoodrich All-Terrain T/A KO3 tyres deliver exceptional durability, traction, and performance. Engineered with advanced tread technology, they provide superior grip on varied terrains, enhanced sidewall protection, and improved wear resistance.
