Module 1: Ford Ranger Next Gen Bar Work & Driving Lights

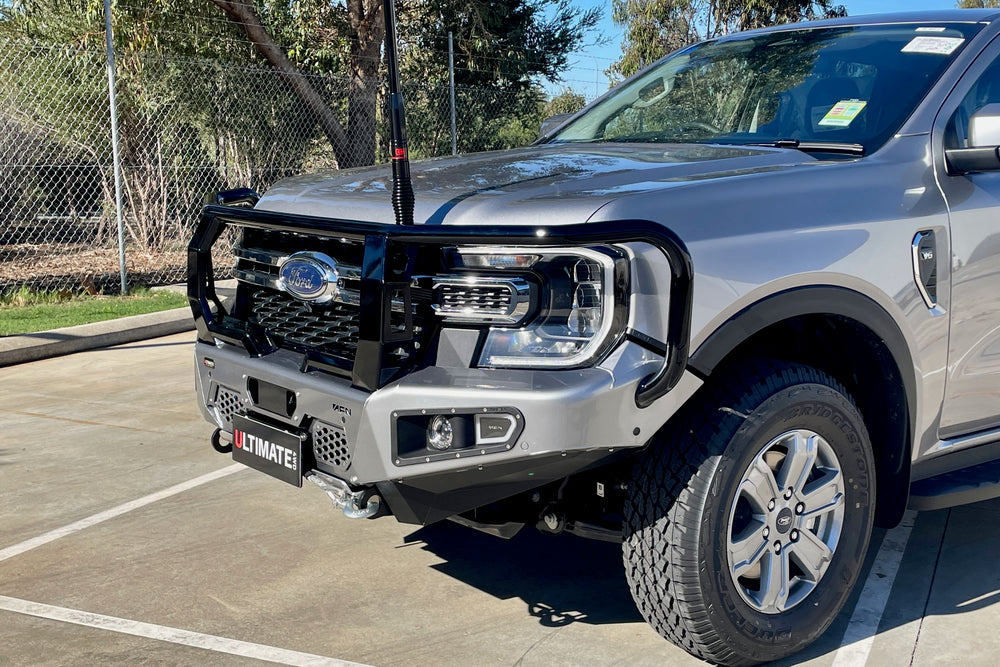

The AFN 4x4 Bull Bar for the Ranger blends cutting edge European design with rugged engineering, delivering premium protection, functionality, and style. Tailored specifically for the Ranger, the AFN Bull Bar is winch compatible and integrates a range of practical features while maintaining the vehicle’s factory aesthetics and safety systems.

• Durable steel construction for maximum protection
• Streamlined, single-piece design engineered for optimal approach angles
• Lightweight design without compromising durability
• Fully compatible with factory safety systems including front camera, sensors, and radar
• Winch cradle incorporated as standard
• Twin recovery points and Hi-Lift jack points built into the design
• Integrated mounting points for driving lights and antennas
• Finished in a textured matte black powder coat, with optional colour coding available

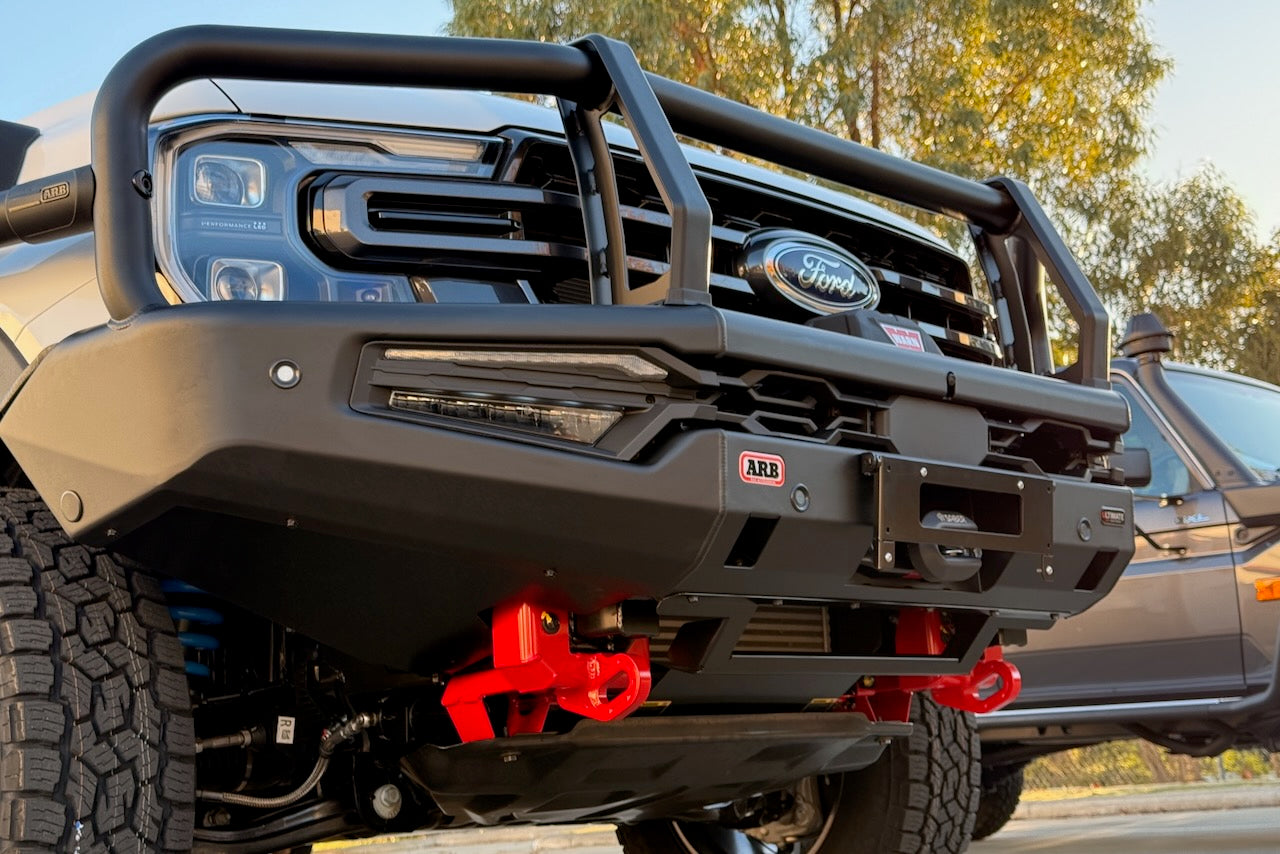

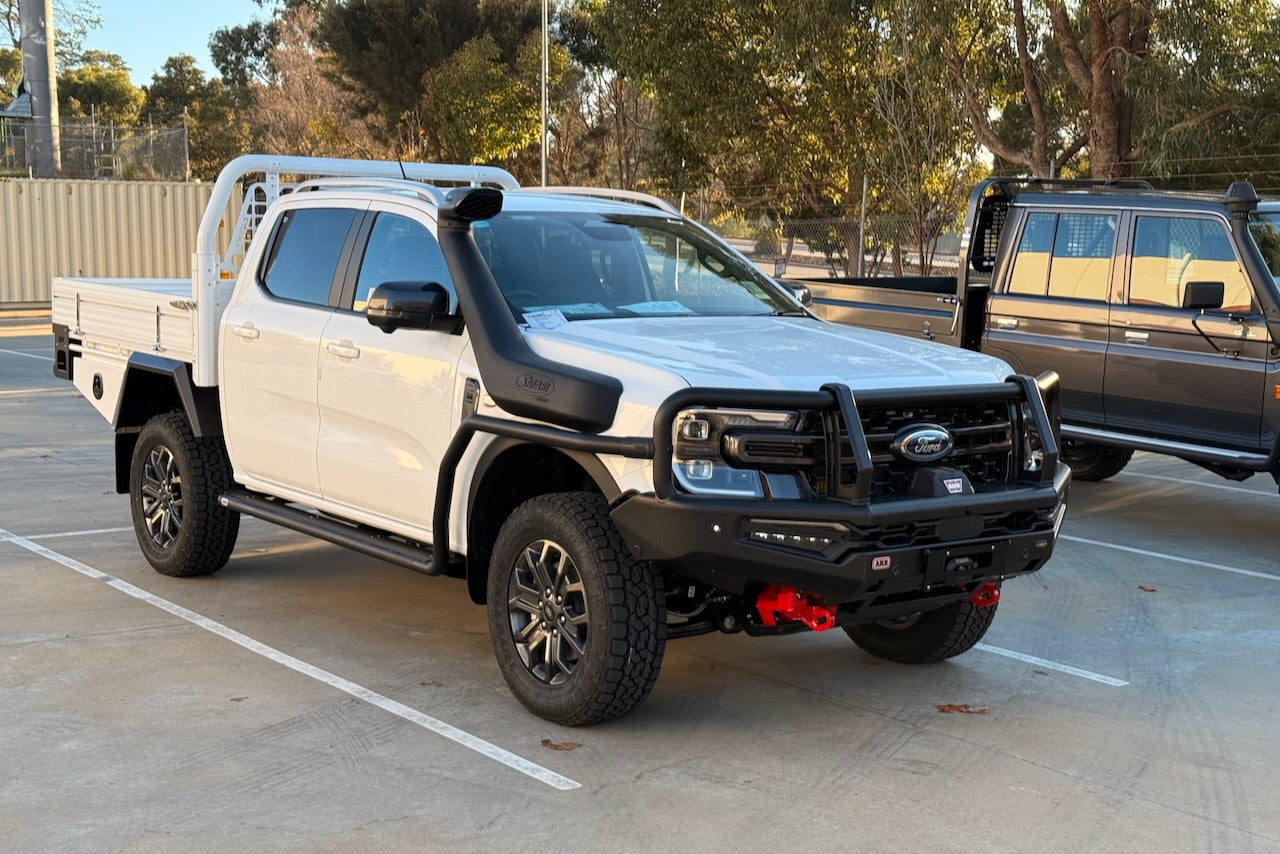

The ARB Summit MKII Bull Bar for the Ranger builds on the proven Summit architecture with updated styling and advanced features to suit the look and functionality of modern 4WDs. Designed for next-generation protection, this bar is winch compatible and eliminates the need for front buffers thanks to precision robot welds and a refined profile.

Key Features:

• Durable steel construction for maximum protection
• Metaprep primer coating for enhanced corrosion resistance
• Matte black powder coat finish, with optional colour coding to match your vehicle
• Split pan design improves strength and airflow
• 60.3mm outer tube with robust centre cross bar
• Airbag-compatible mounting system with high-tensile bolts for chassis integration
• Fully compatible with factory safety systems including front camera, sensors, and radar
• Combination style design suitable for both winch and non-winch setups
• Twin Hi-Lift jack points built into the lower pan
• Provision for Lightforce Beast and other popular driving lights
• Dual antenna mounts on the outer hoops
• Integrated lighting: ARB LED fog lights, daytime running lights and indicators

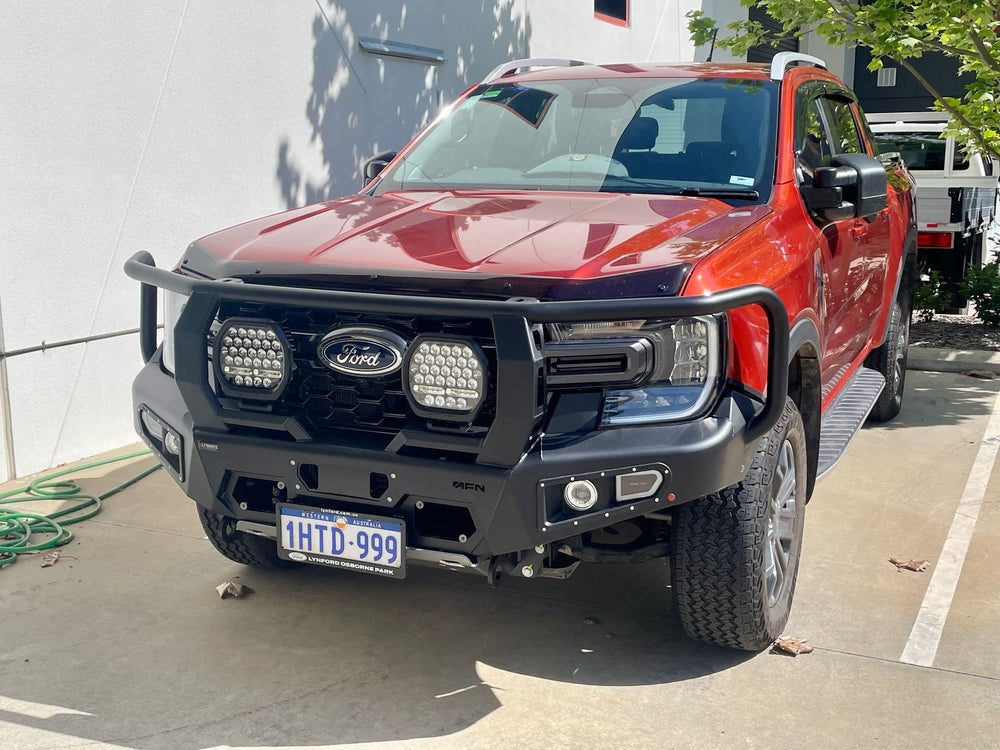

The bull bar comes standard in a modern and durable matte black powdercoat. This is the most durable finish.

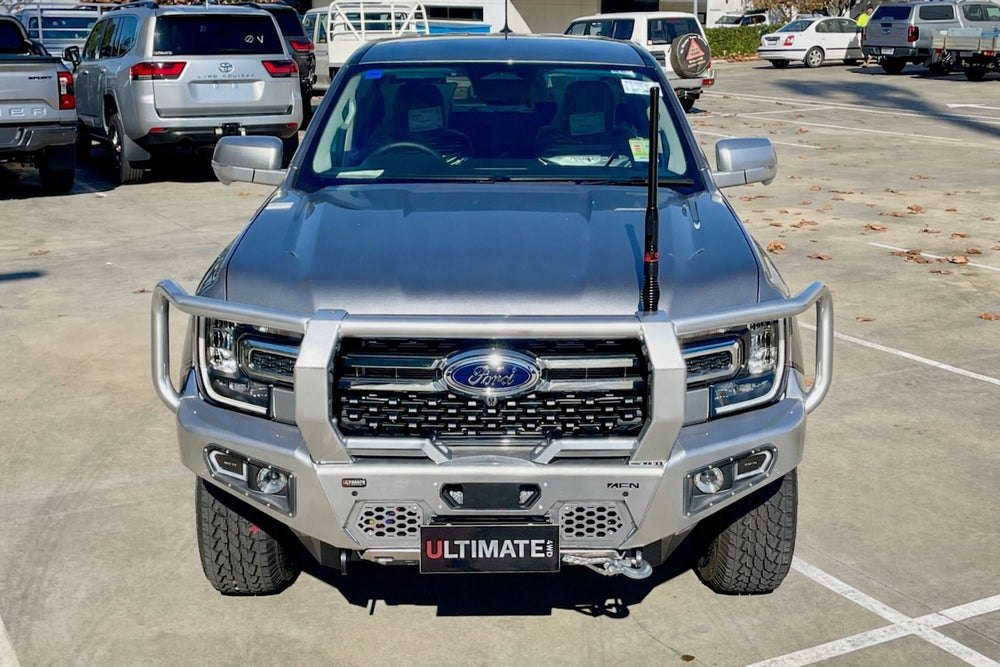

If you prefer your bar to colour coded to match your vehicle we can organise this for you. We use our own local paint shop who consistently deliver a superb result. The bar is prepped and then the paint is applied over the existing powdercoat.

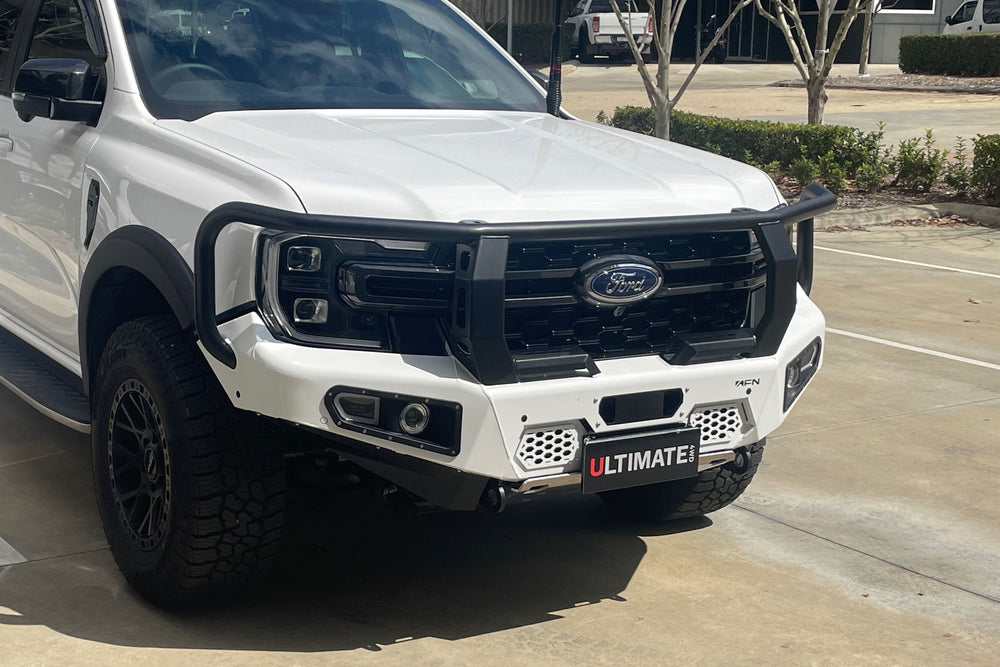

Two tone finish: we colour code the base of the bull bar to your vehicle and retain the top hoops in matte black. It delivers a balanced, customised look that sits between standard black and full colour coding.

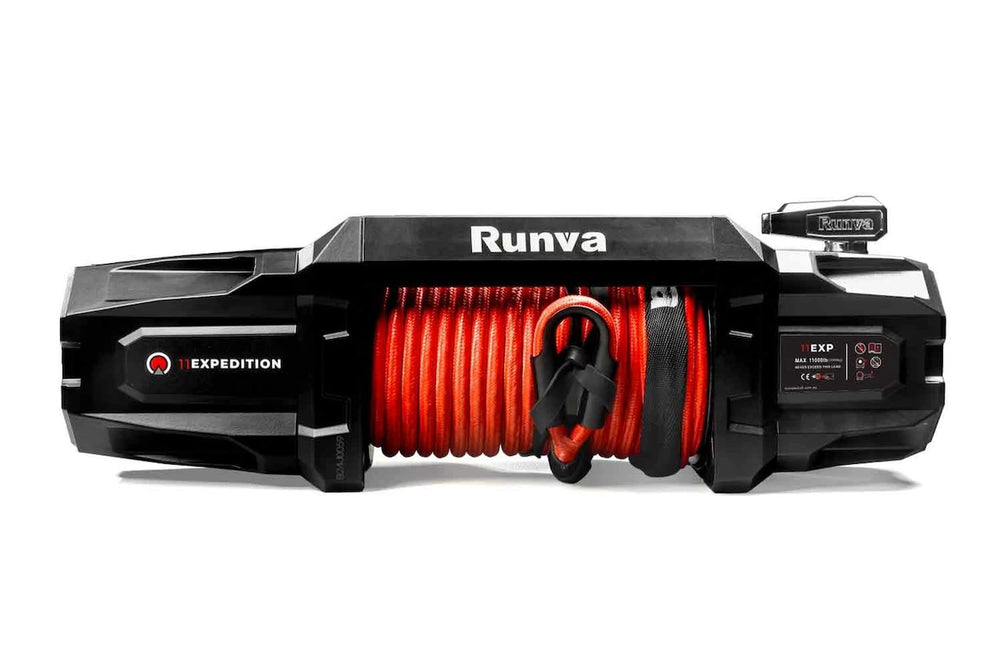

The Runva 11EXPEDITION is a modern recovery winch rated to 11,000 lb, well suited to the weight and intended use of a touring 4WD. It runs synthetic rope to reduce weight and improve handling, and uses a full steel three stage planetary gearset with an automatic load holding brake. The low profile fairlead and guided hook help keep the rope controlled during use, while the rechargeable wireless remote includes a torch for low light recoveries. This winch is matched to the AFN 4x4 bull bar for a clean, integrated installation.

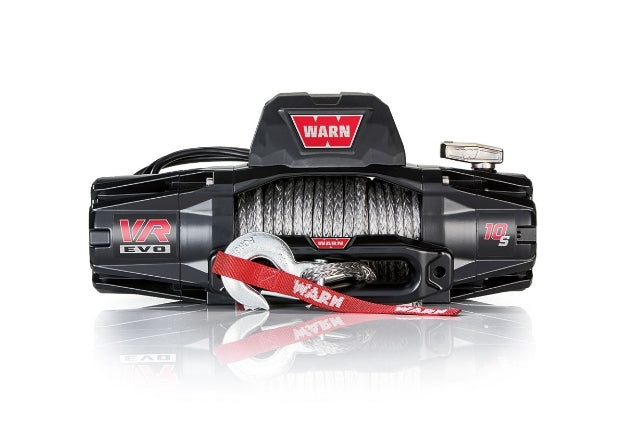

The Warn VR EVO 10-S is a highly reliable winch. Rated to 10,000lb it is perfectly matched to the weight of the vehicle and features synthetic rope for safety, ease of use and to save weight. We've paired this with a Saber Winch Shackle V2 for safer connections and to help stow the winch hook neatly up and out of the way.

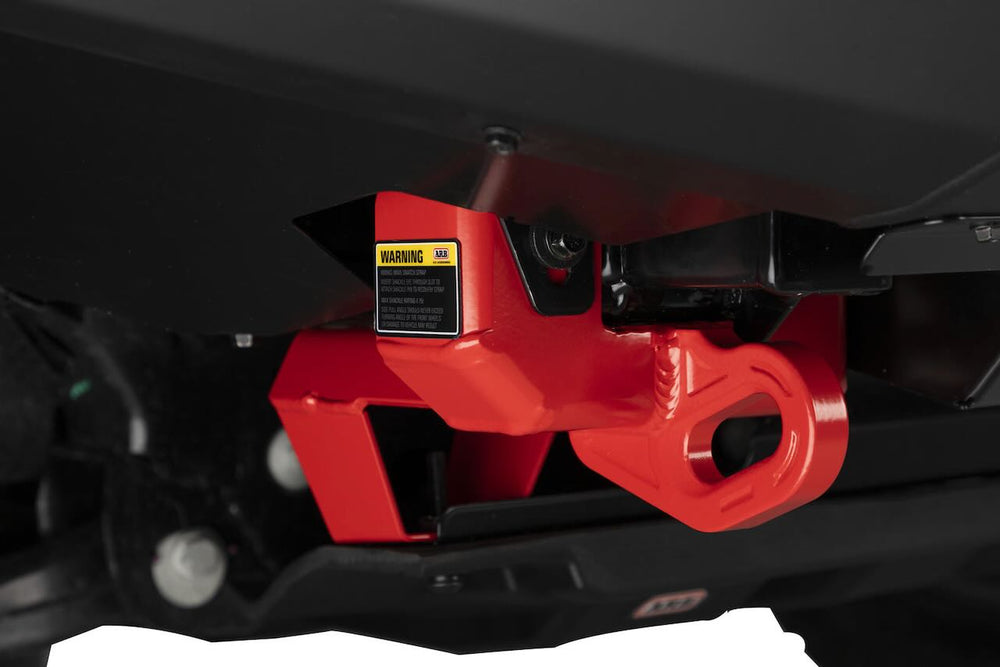

ARB’s forged recovery points are engineered as a matched front pair, designed to work within a complete recovery setup rather than as a generic tie down. Each point is rated to 8,000kg in a straight line pull (up to 35 degrees), with left and right configurations allowing proper load distribution and safer recovery angles.

They’re designed to integrate with either the OE bumper or the ARB Summit MKII bull bar, and the eye is shaped to suit a 4.75t bow shackle or a soft shackle, with a radiused edge to reduce stress on recovery gear. For serious touring or remote work, they provide a properly engineered and vehicle specific front recovery solution.

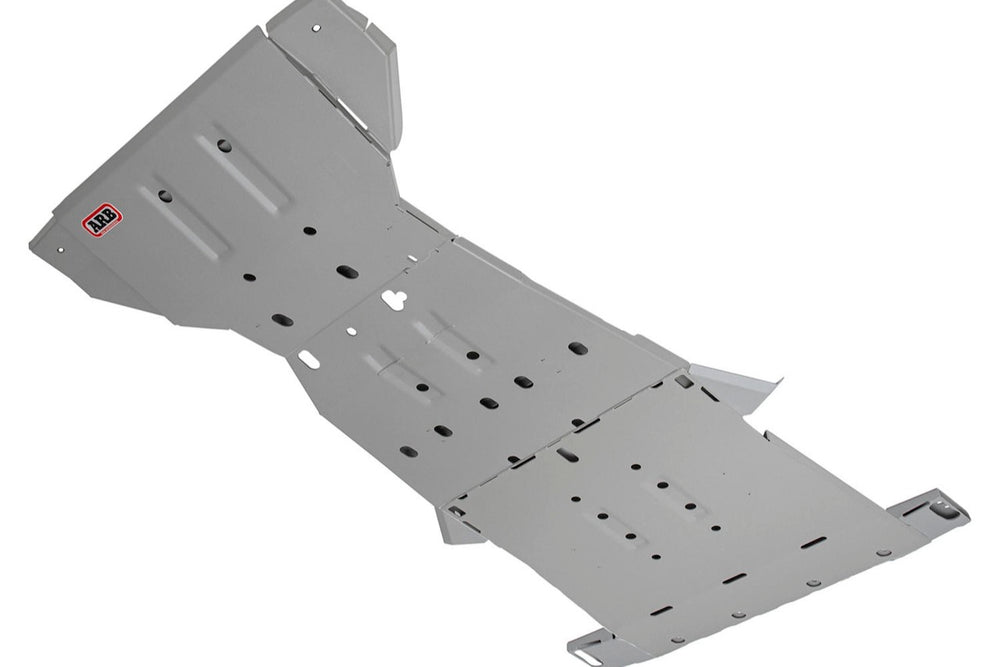

The ARB Under Vehicle Protection panels offer superior protection for critical underbody components, shielding the engine sump, transmission and fuel lines from rocks, ruts and debris. Made from high strength, press formed steel with a tough powdercoat finish, they provide durable, reliable coverage for serious off road use while maintaining easy access for servicing.

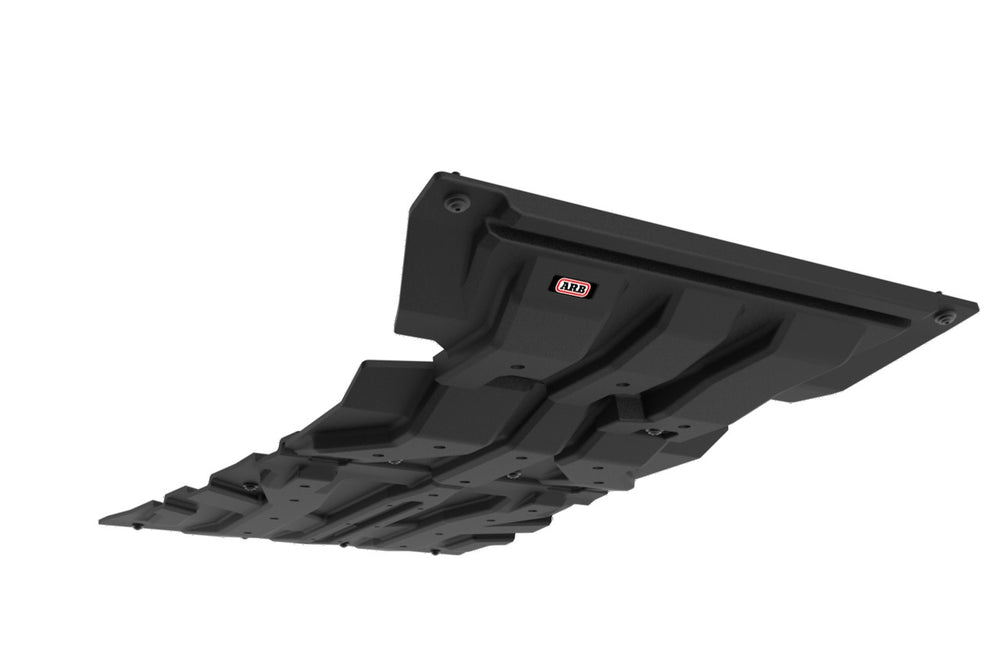

ARB under vehicle armour replaces the factory skid plate with a stronger, vehicle specific shield designed to better protect critical drivetrain components when travelling off road. Built from UV-stabilised crosslink polymer, it offers high impact resistance while remaining significantly lighter than most aftermarket steel alternatives. The design allows straightforward removal for servicing and integrates with factory bumpers, SmartBar and ARB bull bars.

Key features

• Improved protection for drivetrain components and inner CV joints
• UV-stabilised crosslink polymer construction
• Lightweight, corrosion and heat resistant
• Deep rib structure for strength and impact resistance
• Reinforced chassis-mounted bracket system
• Easy removal for servicing access
• Designed and manufactured in Australia

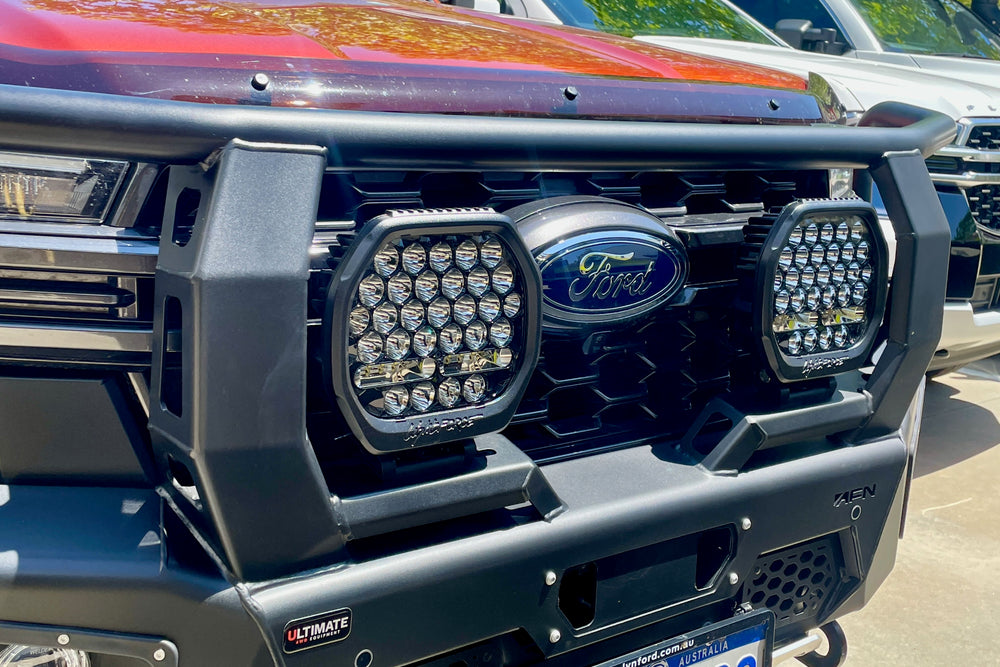

The Lightforce Beast is the latest offering from renowned driving light manufacturer, Lightforce. They are made in Australia from the highest quality components and feature three modes - Spot, Flood & Beast! One pair of these is all the lighting you will need.

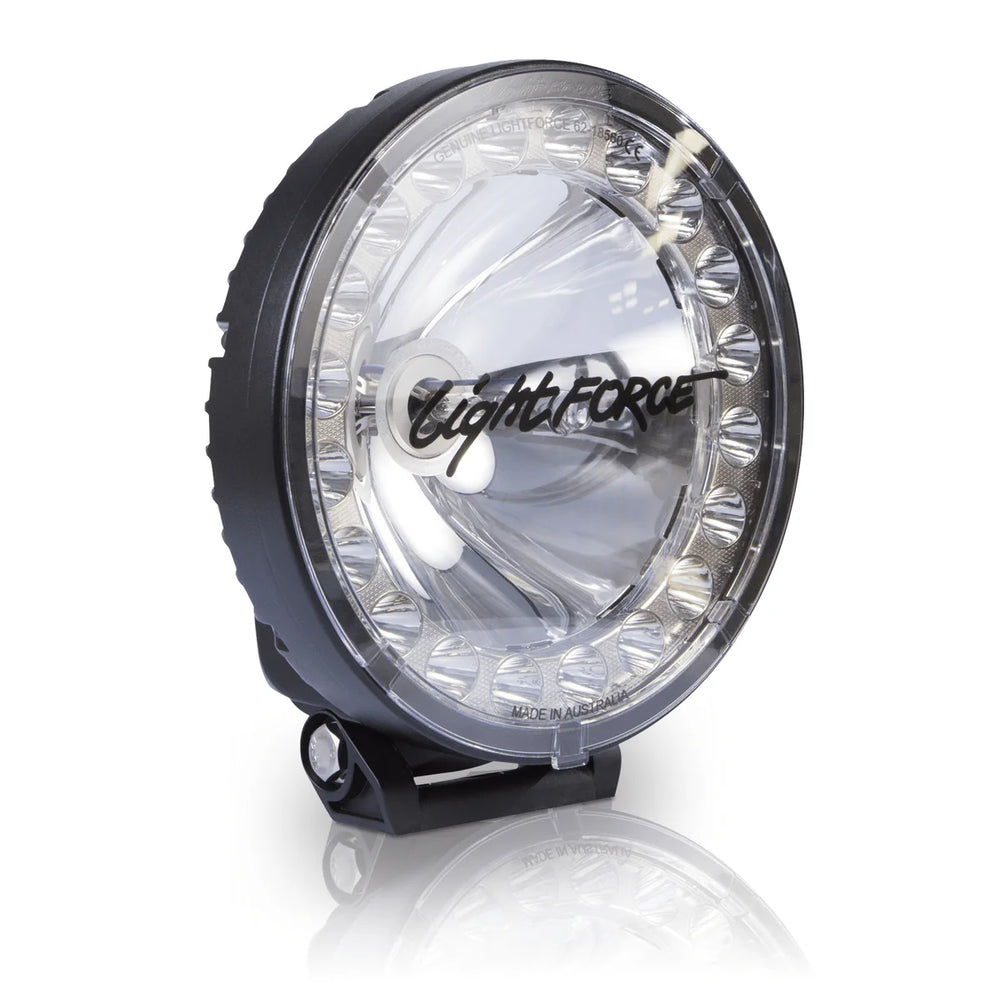

The Lightforce HTX2 Hybrid Driving Light offers a unique combination of long distance HID spot beam, and LED spread beam output equivalent to a 20 inch light bar.

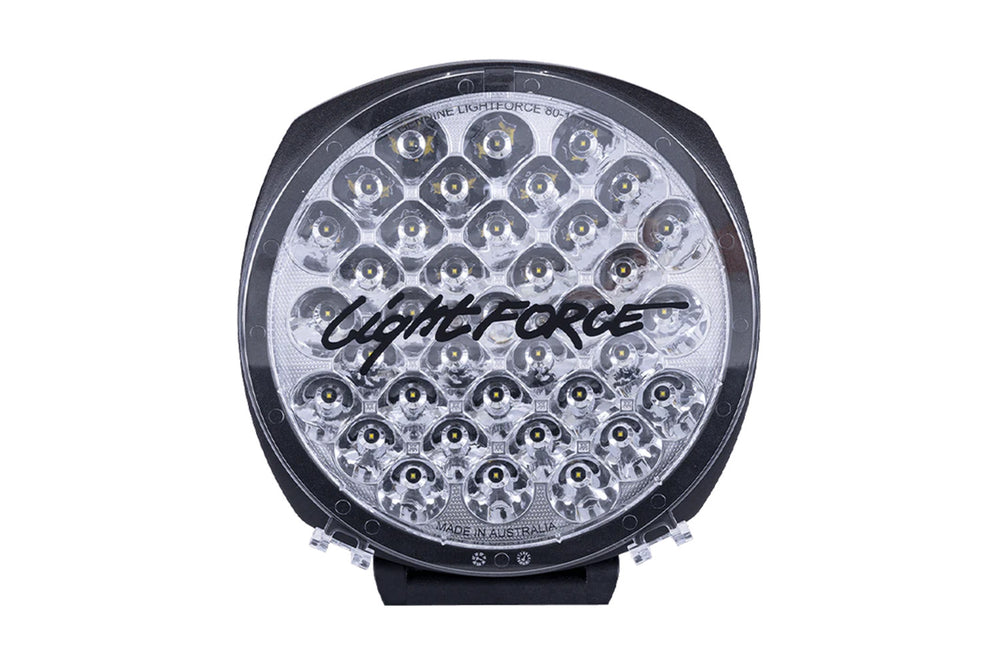

The Lightforce Genesis LED is Australian made, built around a simple and proven platform that focuses on usable long range output. It’s a straightforward 210 mm LED driving light with solid forward projection and dependable performance in remote touring conditions.

With most suspension upgrades lifting the vehicle 50mm, the Clearview Power Boards make accessing the cabin easy. The automatically lower when opening the door to a height far lower than is possible with fixed steps and then tuck neatly up out of the way for travel.

The ARB steps are made from steel and are our most durable option. They come with powdercoat matt black tube and we Xtreme coat the alloy top step locally for improved durability and grip.

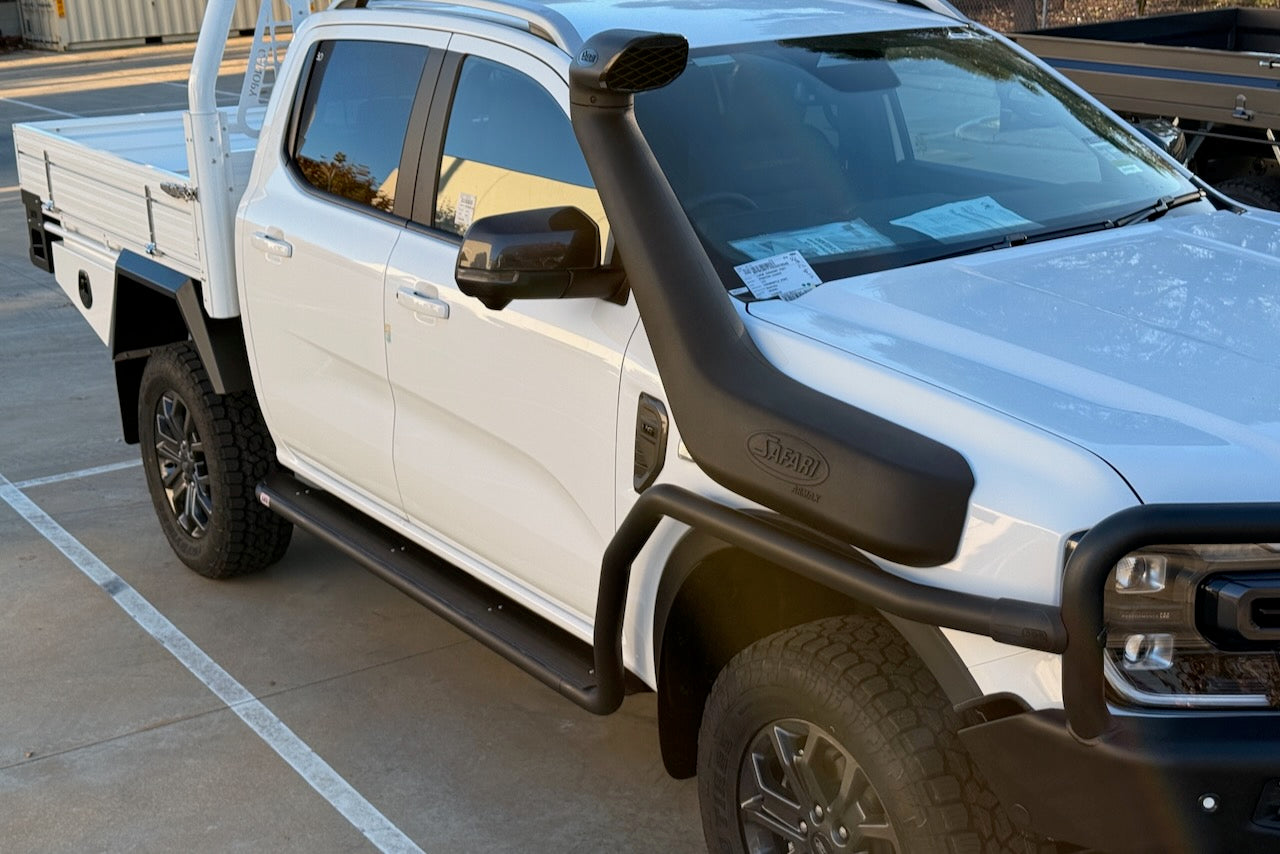

ARB side rails provided added strength and protection. Extra charges apply for side step and side rail colour coding.
