Module 3: Toyota LandCruiser Prado 250 Series Storage & Electrical Systems

Storage Systems: Toyota Prado 250

The Prado 250 Series brings a lot to the table, but its third-row seat design has left a lot of owners looking for better solutions. Rather than folding flat into the floor, the third-row seats sit on top of the cargo area, significantly limiting usable space. Combined with the raised rear floor — designed to accommodate the vehicle’s hybrid system — the result is a compromised load area that doesn’t suit the needs of those who rely on their Prado for serious travel and storage.

If third row seating is not required, the best option is to remove the seats and the raised floor, and install either a cargo floor for maximum load space, or a drawer system for efficient and organised storage.

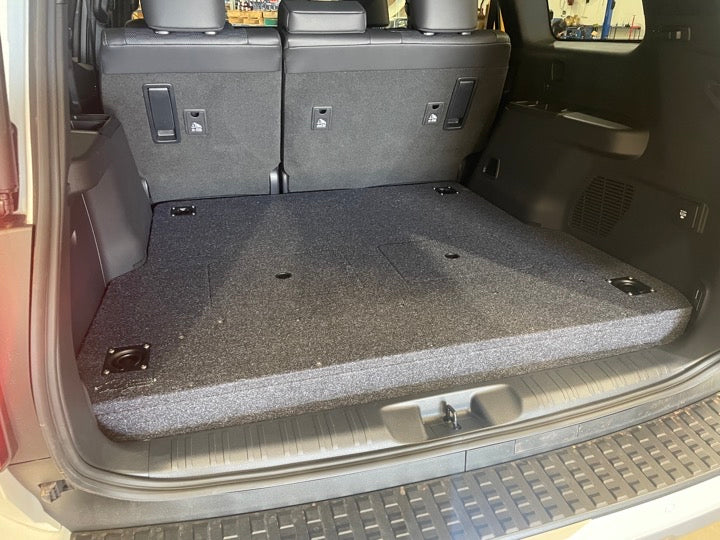

Storage System: RV Storage Solutions Rear Cargo Floor

The RV Storage Solutions rear cargo floor replaces the third-row seats to create a low, flat, and highly functional load area—ideal for both touring and everyday use. Designed to sit as low as possible while maintaining clearance for the factory hybrid battery system, it also provides space to accommodate a basic lithium power setup without further compromising cargo capacity.

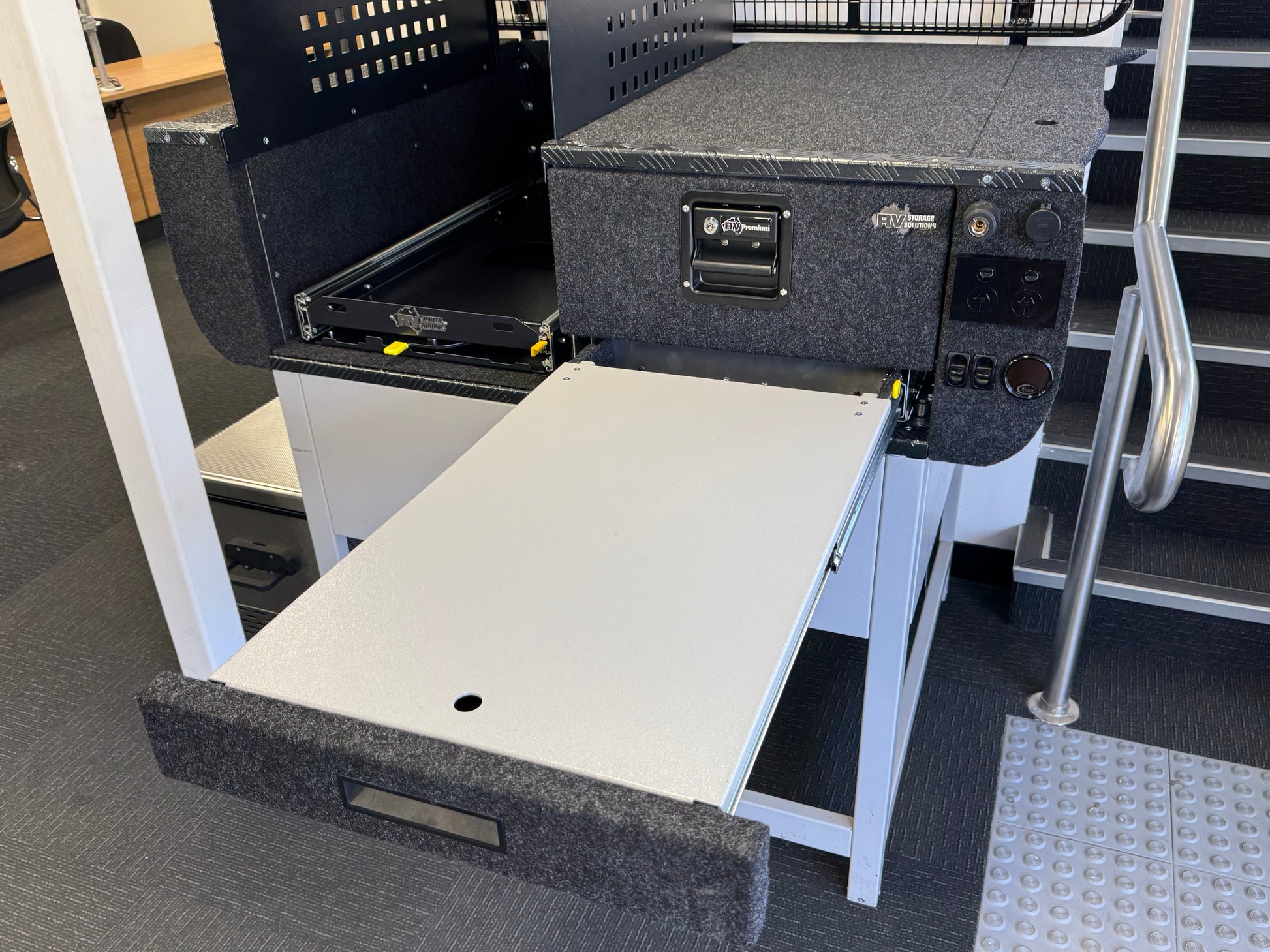

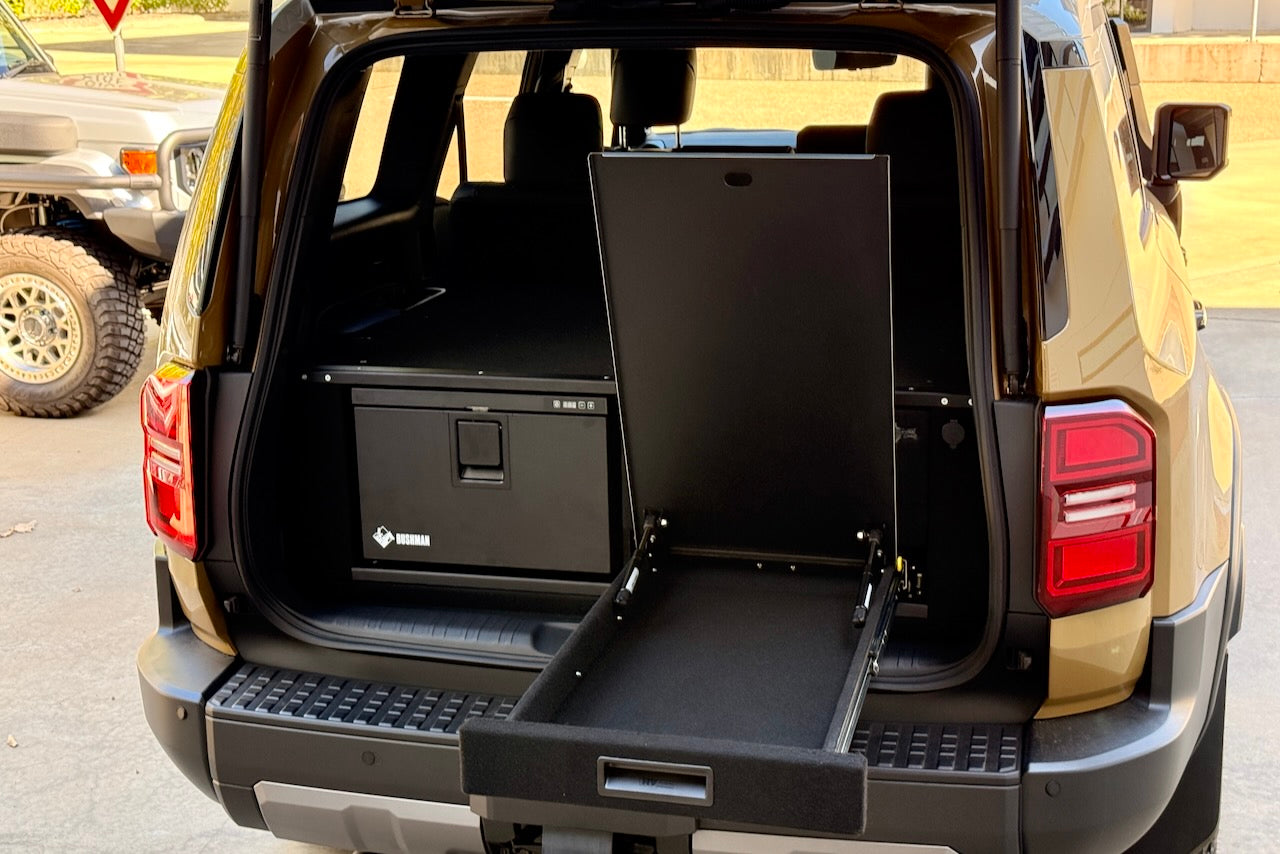

Storage System: RV Storage Solutions Drawer Stacker with Table

The RV Storage Solutions drawer stacker with table is a storage system combining fridge mounting options and storage drawers making practical and efficient use of your vehicle’s cargo area. The system can be configured to suit either a drawer-style fridge or a chest-style fridge mounted on a fridge slide. This flexibility lets you choose the setup that best suits your needs.

Key Features:

• Fridge Compatibility: Choose between a drawer fridge integration or chest fridge with slide-out access.
• Pantry Drawer & Storage: Includes a pantry drawer for non-refrigerated items and a hinged lid that doubles as a tabletop, offering a convenient prep or cooking surface.
• Integrated Tabletop: Hinged lid over the pantry drawer acts as a handy table surface.
• Ventilated Design: Vented side and rear panels ensure airflow around the fridge for efficient cooling.
• Lightweight Construction: Built from aluminium to keep weight down without sacrificing strength or reliability.
• Safety Features: Lockout latches prevent drawers from rolling back on inclines, and spring-loaded latches allow easy drawer removal when needed.

Bushman DF30-HD 30L Drawer Fridge

The Bushman DF30-HD is a premium 12V/24V drawer-style fridge/freezer engineered for Australia's demanding off-road environments. Designed to operate year-round on rugged corrugated roads, it's the most robust and capable 12V fridge Bushman has produced.

Key Features:

• Heavy-Duty Performance: Equipped with the Secop® Danfoss BD35HD compressor, it offers deep freezing down to -18°C in ambient temperatures up to 45°C, and refrigeration at +4°C in up to 50°C heat
• Durable Construction: Features full stainless steel hardware, including drawer runners and a steel slam latch, ensuring longevity and reliability.
• Efficient Cooling: Twin cross-flow heat extraction fans and up to 75mm thick insulation maintain optimal internal temperatures.
• Energy Efficient: Consumes as little as 0.5Ah per hour at 4°C in 25°C ambient conditions, making it ideal for extended off-grid use.
• Warranty: Backed by a 3-year warranty on workmanship and materials, plus an industry-leading 7-year compressor warranty.

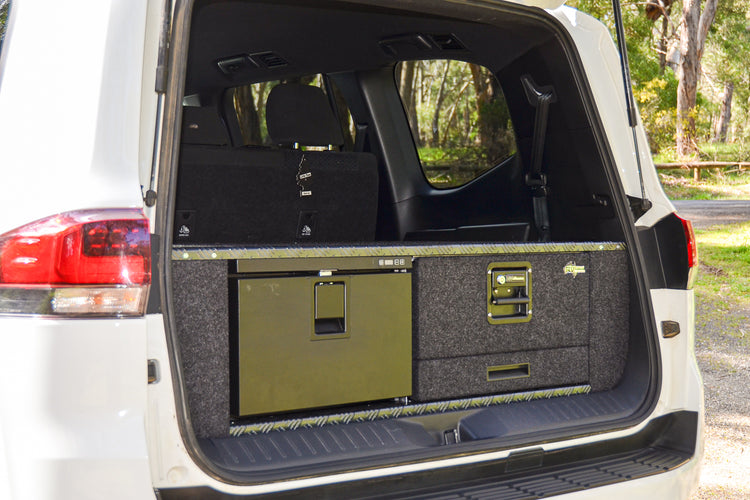

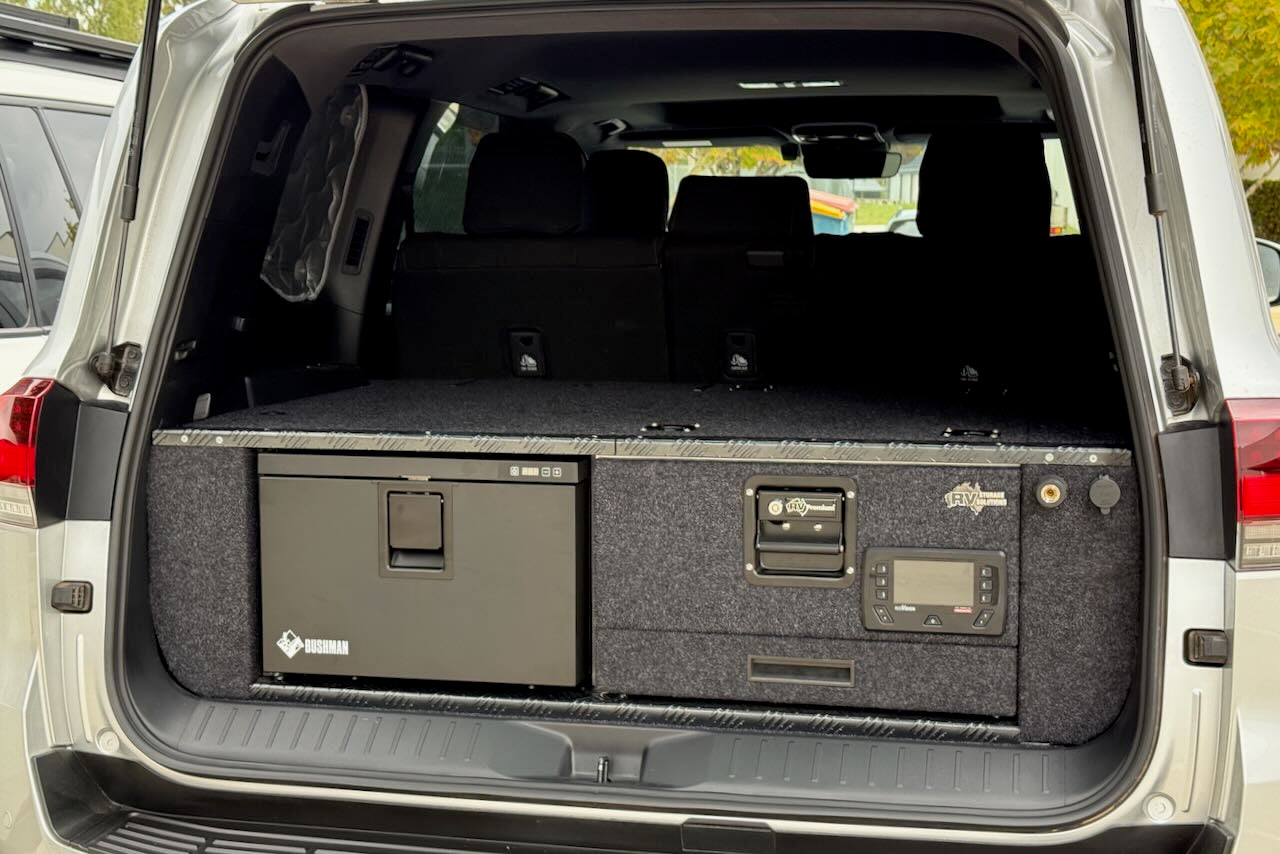

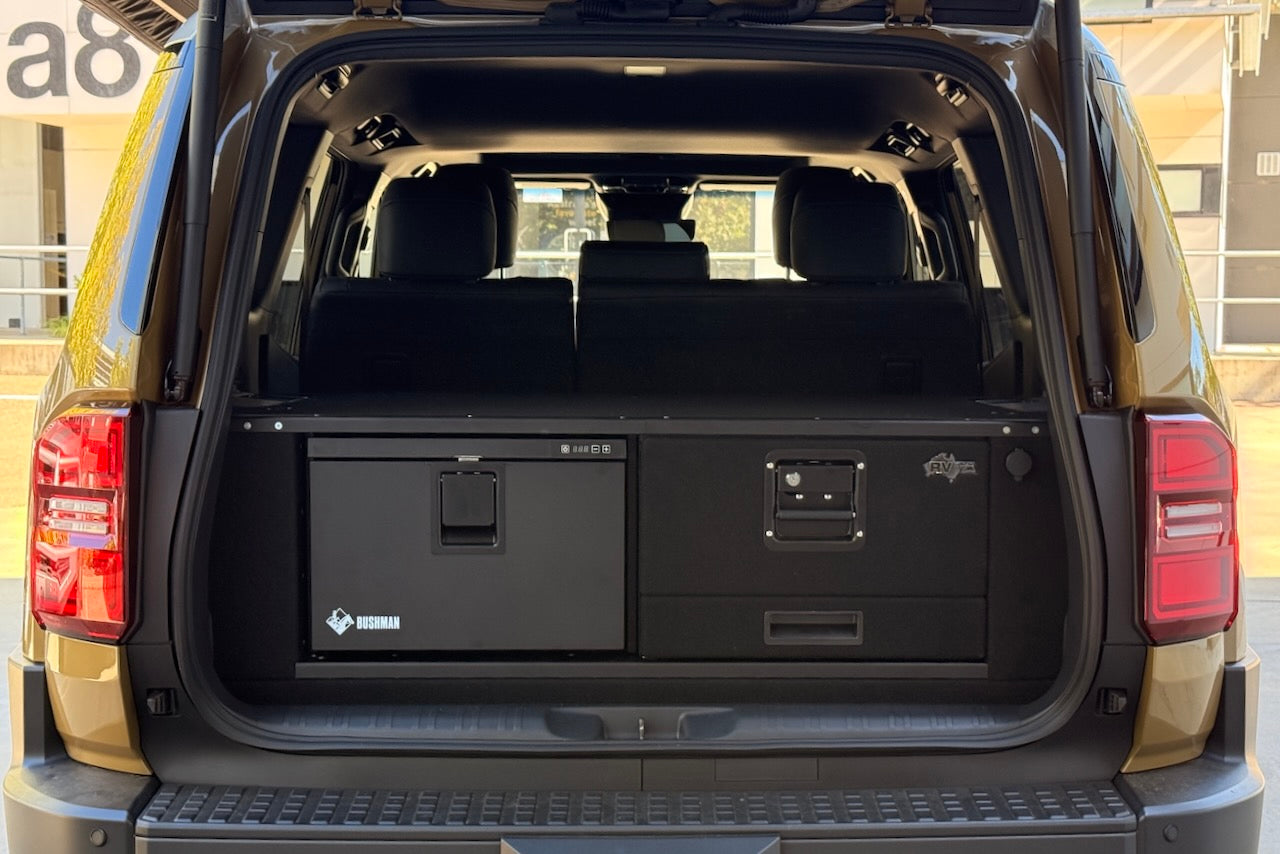

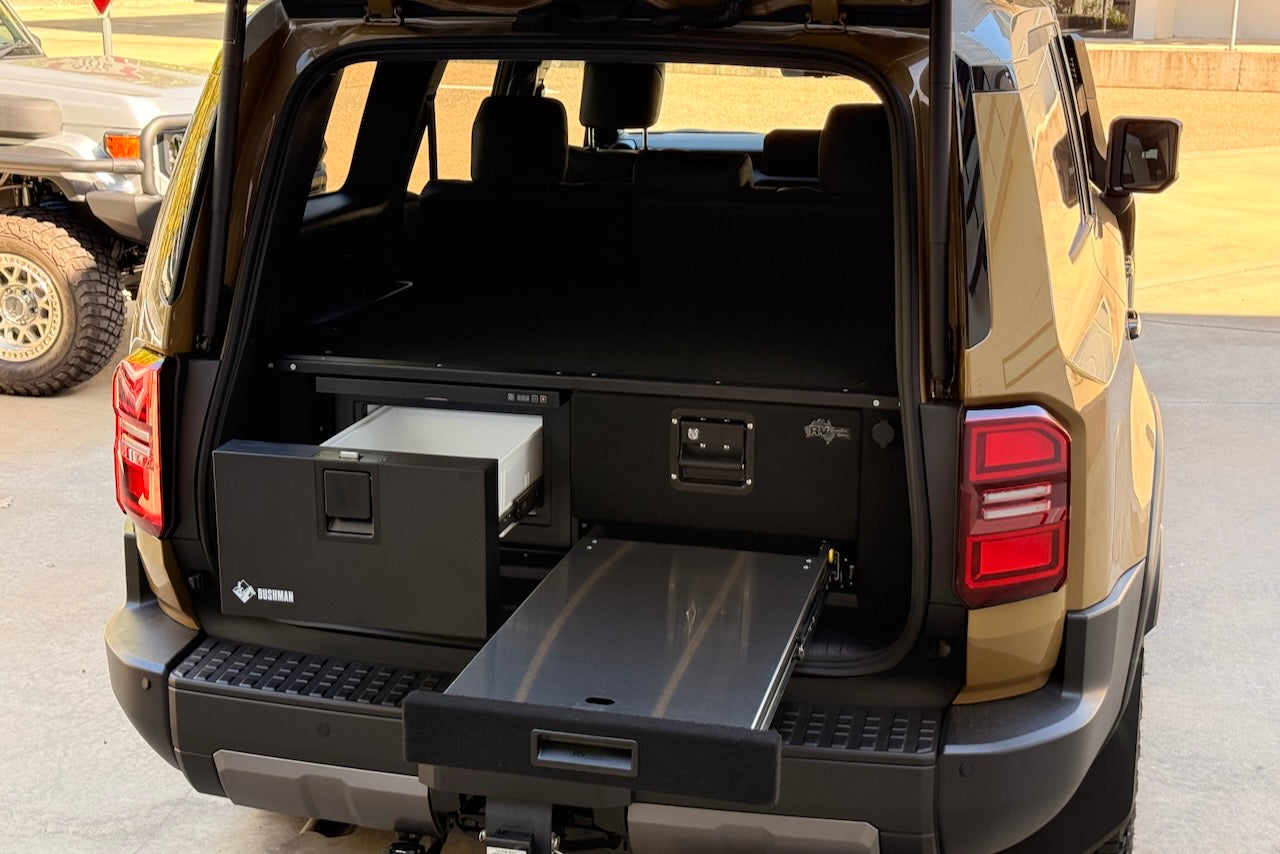

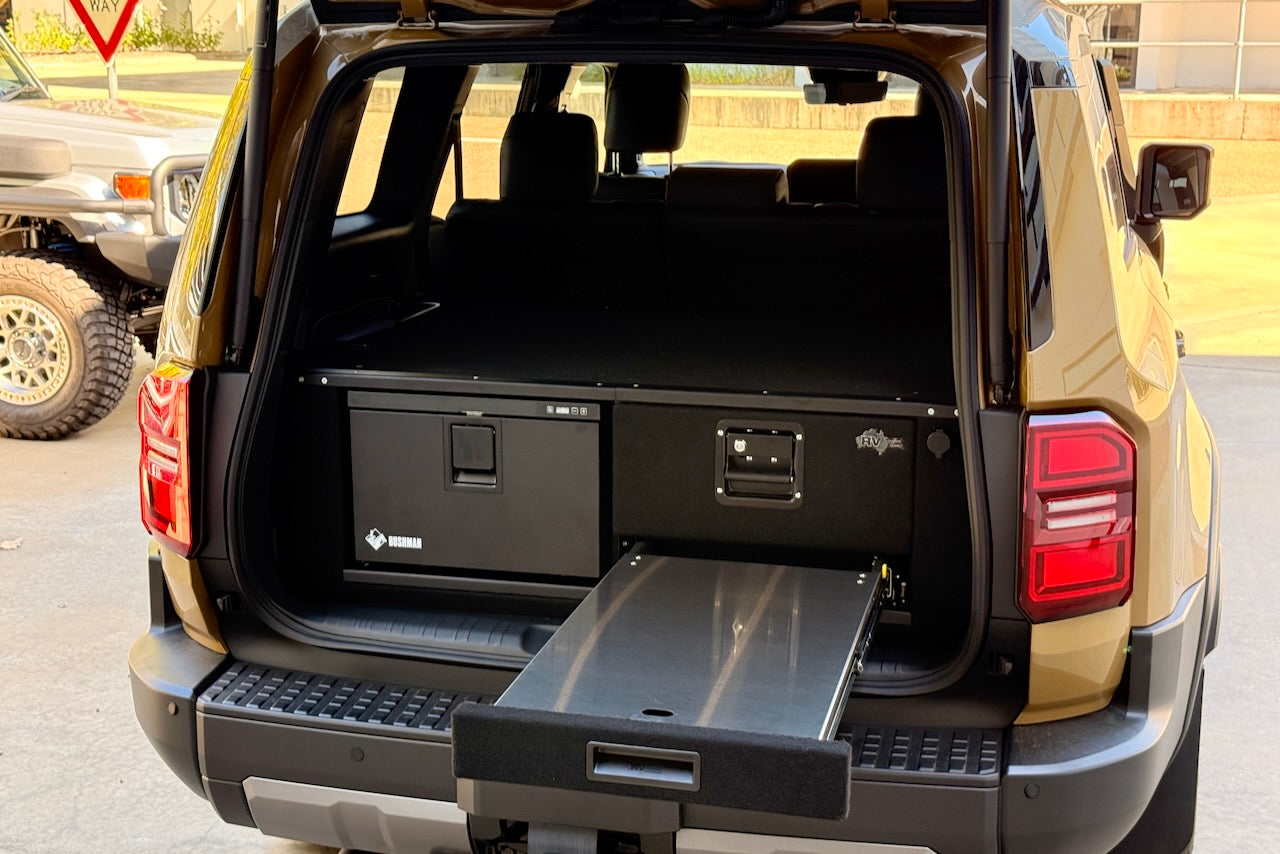

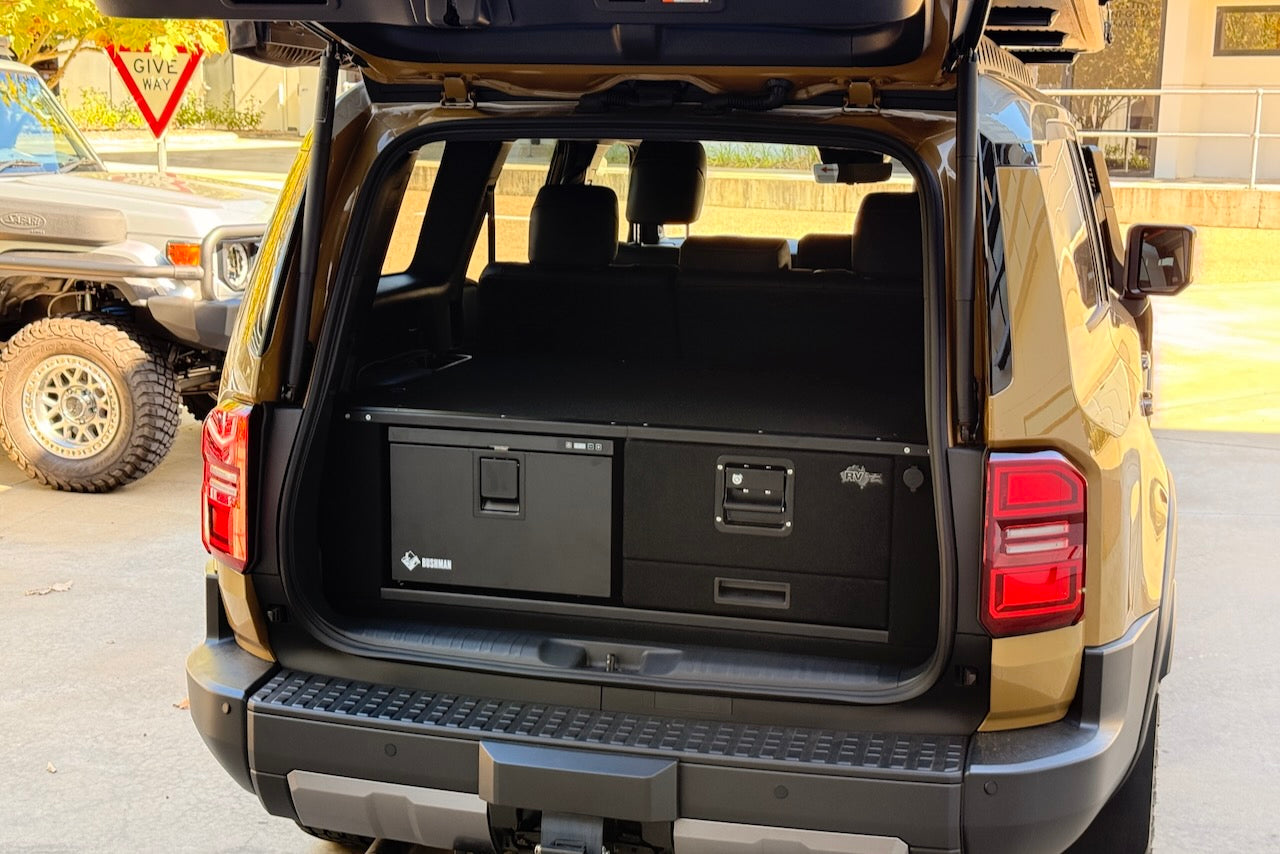

Seamless Integration with the RV Storage Solutions Drawer Stacker

Pairing the Bushman DF30-HD with the RV Storage Solutions Drawer Stacker creates a versatile and efficient storage solution for your vehicle:

• Flat-Top Design: Installing the Bushman drawer fridge within the stacker allows for a completely flat top across the system. This means you retain a full, level surface that's perfect for stacking bulky gear, storage tubs, or work equipment.
• Optimised Space: The drawer stacker's design accommodates the Bushman fridge perfectly, ensuring a snug fit and maximising cargo area efficiency.
• Ventilation: Vented side and rear panels in the stacker align with the fridge's cooling system, promoting optimal airflow and performance.

National Luna 60L Legacy Dual Control Fridge/Freezer

The National Luna 60L Legacy Dual Control Fridge/Freezer is a premium, dual-compartment unit designed for all types of adventures. With independent temperature controls, it offers the flexibility to operate as a fridge and freezer simultaneously, or as two fridges or two freezers, depending on your needs.

Key Features:

• Dual Compartment Flexibility: Features a 24.2L left compartment and a 34.9L right compartment, each with its own thermostat. The left compartment can be set from +20°C to -24°C, while the right ranges from +20°C to -18°C
• Robust Construction: Built with a stainless steel exterior, heavy-duty carry handles and lockable latches.
• Efficient Cooling: Utilizes National Luna's off-road compressor and high-density polyurethane insulation (60mm for the freezer, 42mm for the fridge) for optimal performance.
• User-Friendly Features: Equipped with an internal LED light, five removable baskets, and digital temperature controllers for ease of use.

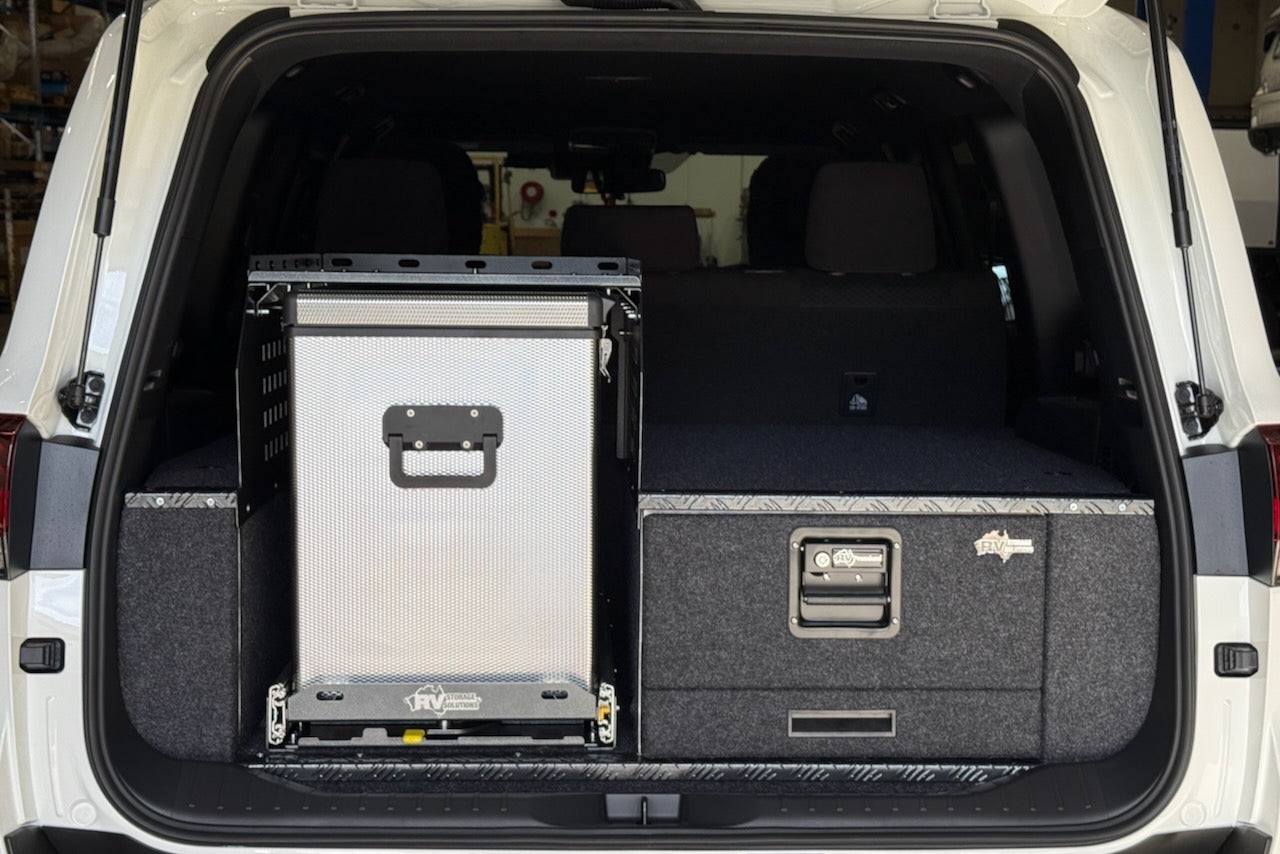

Integrated Setup with RV Storage Solutions Drawer Stacker

When paired with the RV Storage Solutions Drawer Stacker, the National Luna 60L becomes part of a highly efficient and organized storage system:

• Fridge Slide Integration: Mounted on a heavy-duty fridge slide, the unit allows full extension for easy access to both compartments.
• Vented Cargo Shelf: A custom shelf above the fridge with vented sides maximizes vertical space, providing additional storage while ensuring proper airflow for the fridge's operation.

RV Storage Solutions Half Cargo Barrier

The RV Storage Solutions (RVSS) Half Cargo Barrier is engineered to enhance occupant safety by preventing unsecured cargo from entering the passenger area during sudden stops or collisions.

Key Features:

• ADR Certification: The barrier has undergone rigorous crash testing in accordance with AS/NZS 4034.2:2008, confirming its effectiveness in real-world scenarios.
• Load Rating: It is rated to restrain up to 60 kg, providing reliable protection against shifting cargo.
• Airbag Compatibility: Designed to be airbag deployment compliant, it does not interfere with the vehicle's safety systems.
• Vehicle-Specific Design: Tailored to fit your vehicle, the barrier integrates seamlessly with RVSS drawer systems, often requiring no drilling for installation.

Electrical System

Removing the third row seats and installing drawers or a cargo floor provides the opportunity to power up your adventures with a lithium battery system without sacrificing storage space

Electrical System with Drawers

Using the available space beneath the drawer system, as well as the sides and rear face of the drawers, you can have the Ultimate 12V and 240V power setup

• Custom Lithium Ultra Slim Battery – 100Ah or 200 Ah
• Redarc BCDC Alpha50 R - DC and Solar charger with Smart Battery Monitor

Optional

• Redarc Rogue Power Distribution
• Redarc Redvision monitoring and digital switching
• Redarc RS3 2000W Pure Sine Wave inverter
• ARB Twin Compressor & Accessories

Electrical System with Cargo Floor

The remaining space beneath the cargo floor allows for a simple electrical system, great for powering a fridge, lights and other 12V accessories.

• Custom Lithium Ultra Slim Battery 100Ah
• Redarc BCDC Alpha50 R - DC and Solar charger with Smart Battery Monitor

Tailgate Light

The Lightforce ROK20 Flush Mount LED work light is the perfect complement to the cargo system in the back of the Prado 250. At the flick of a switch you will have ample light thrown into the cargo area, as well as around the rear of the vehicle; perfect for loading and unloading, or just grabbing a drink out of the fridge.
