Storage & Electrical Systems

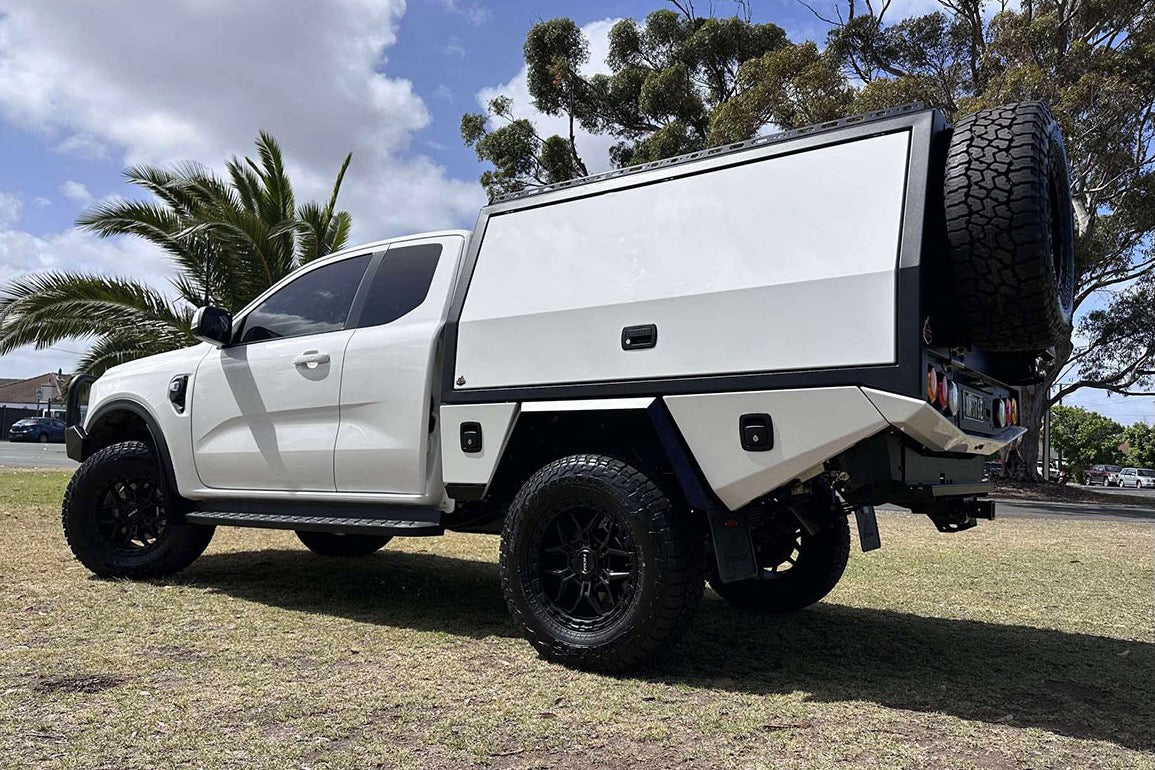

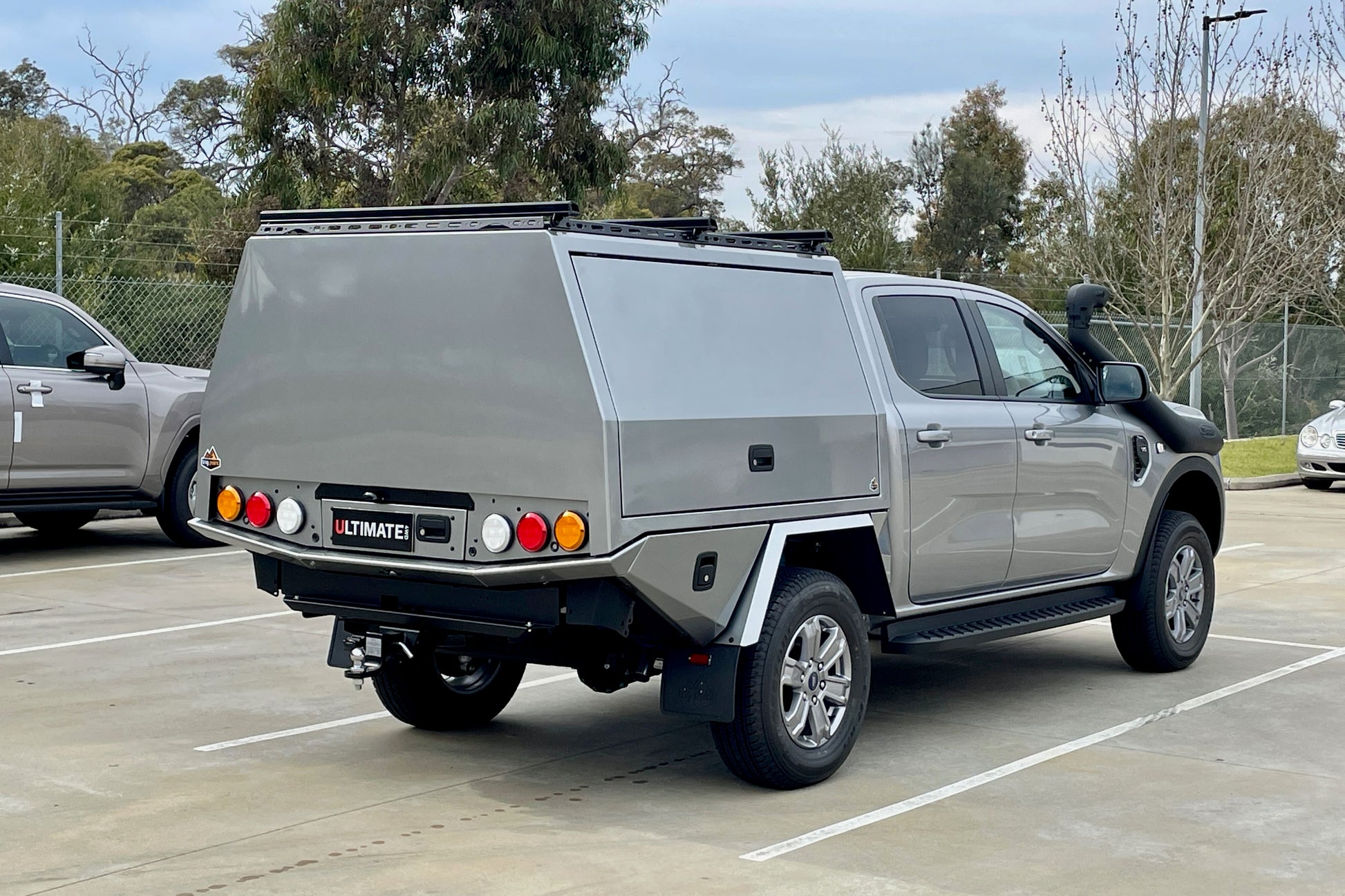

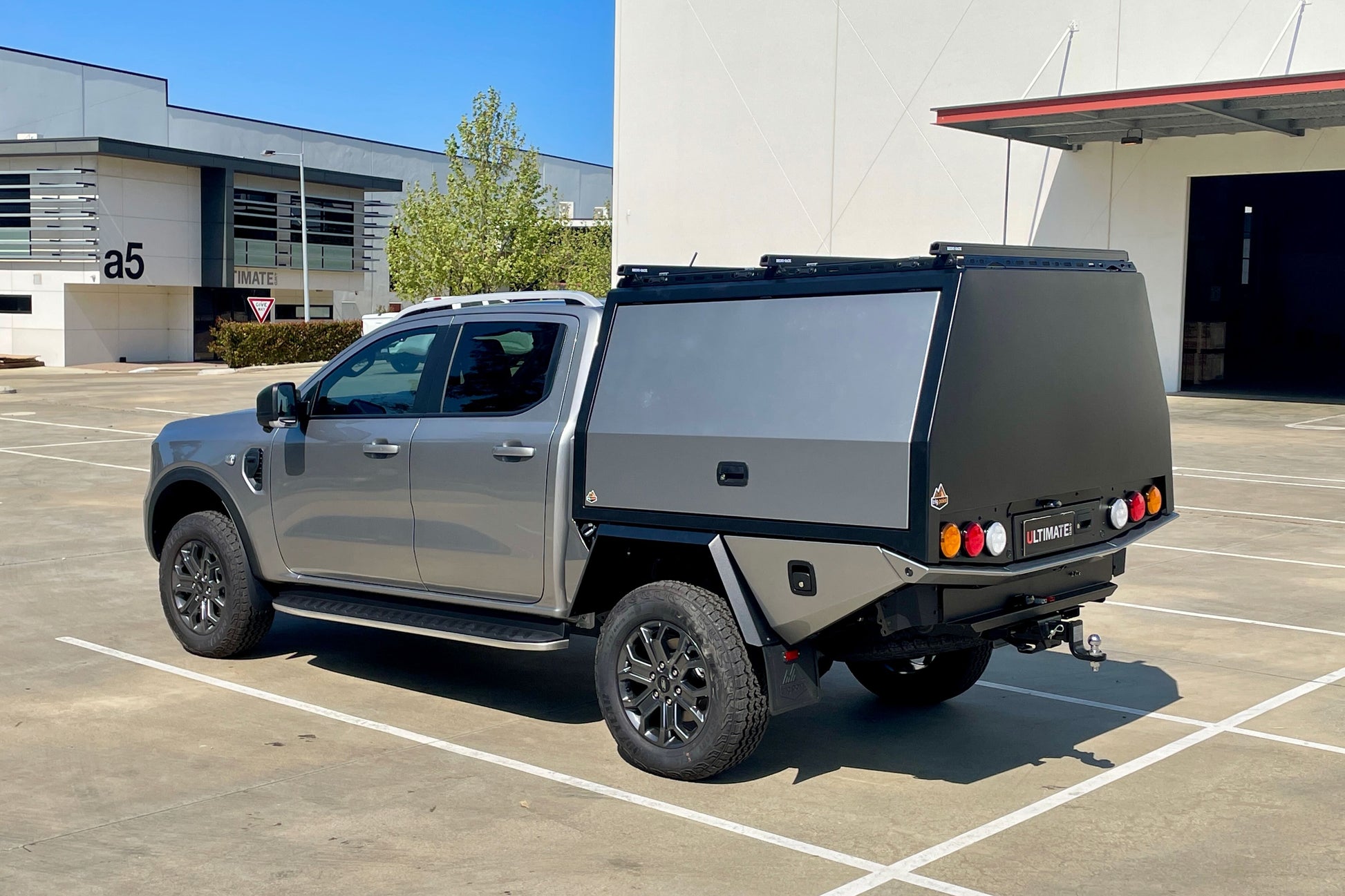

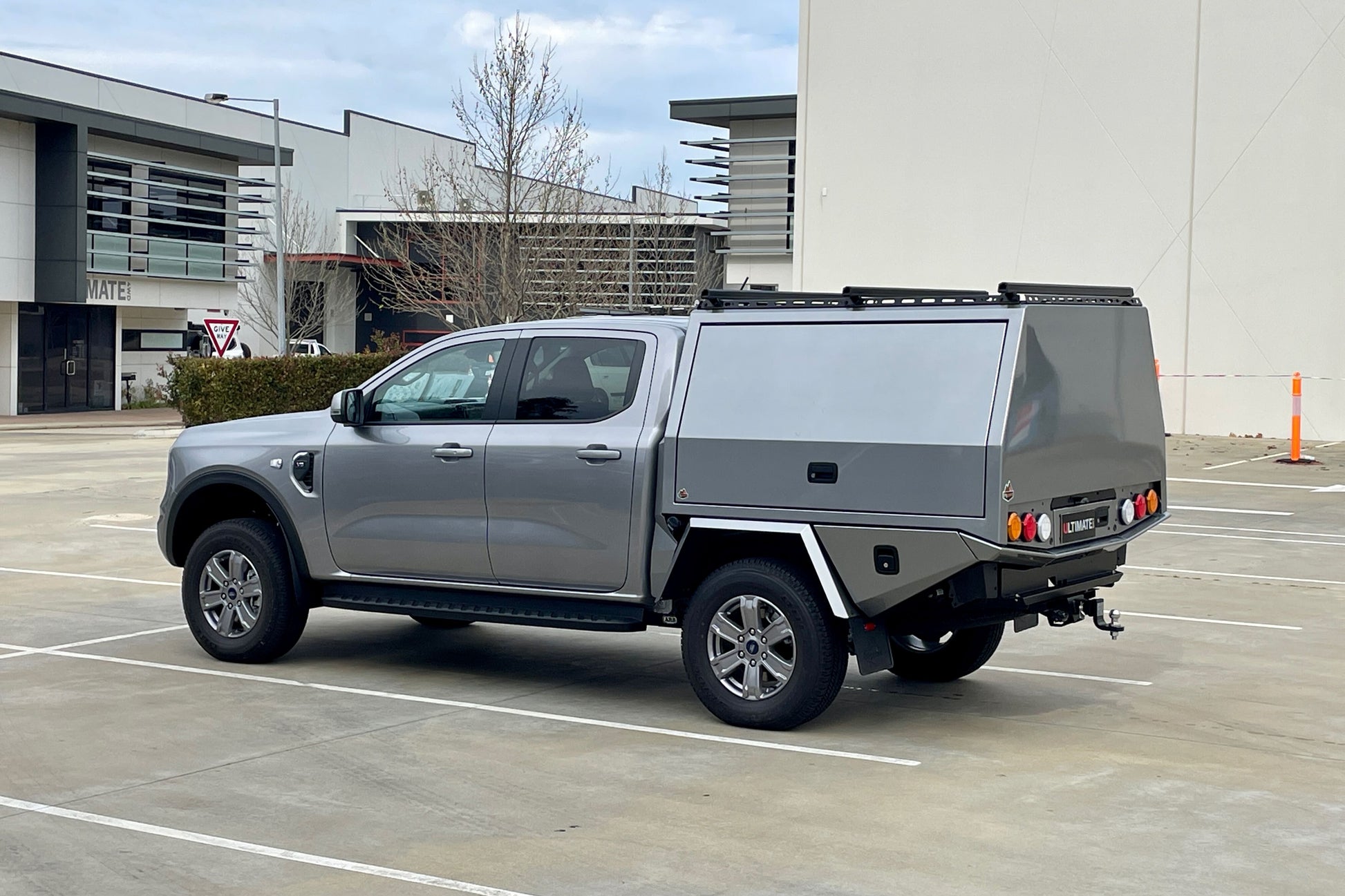

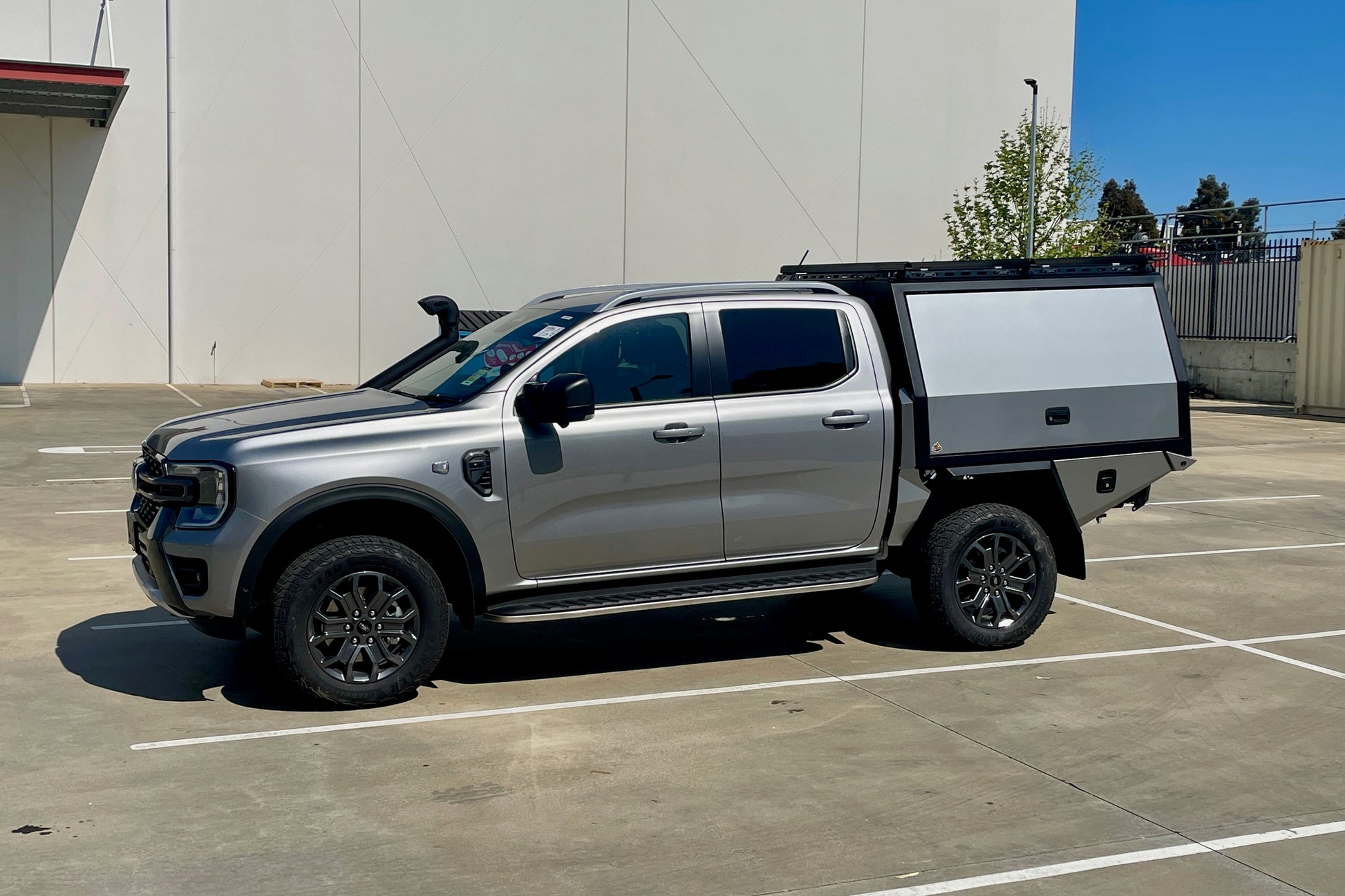

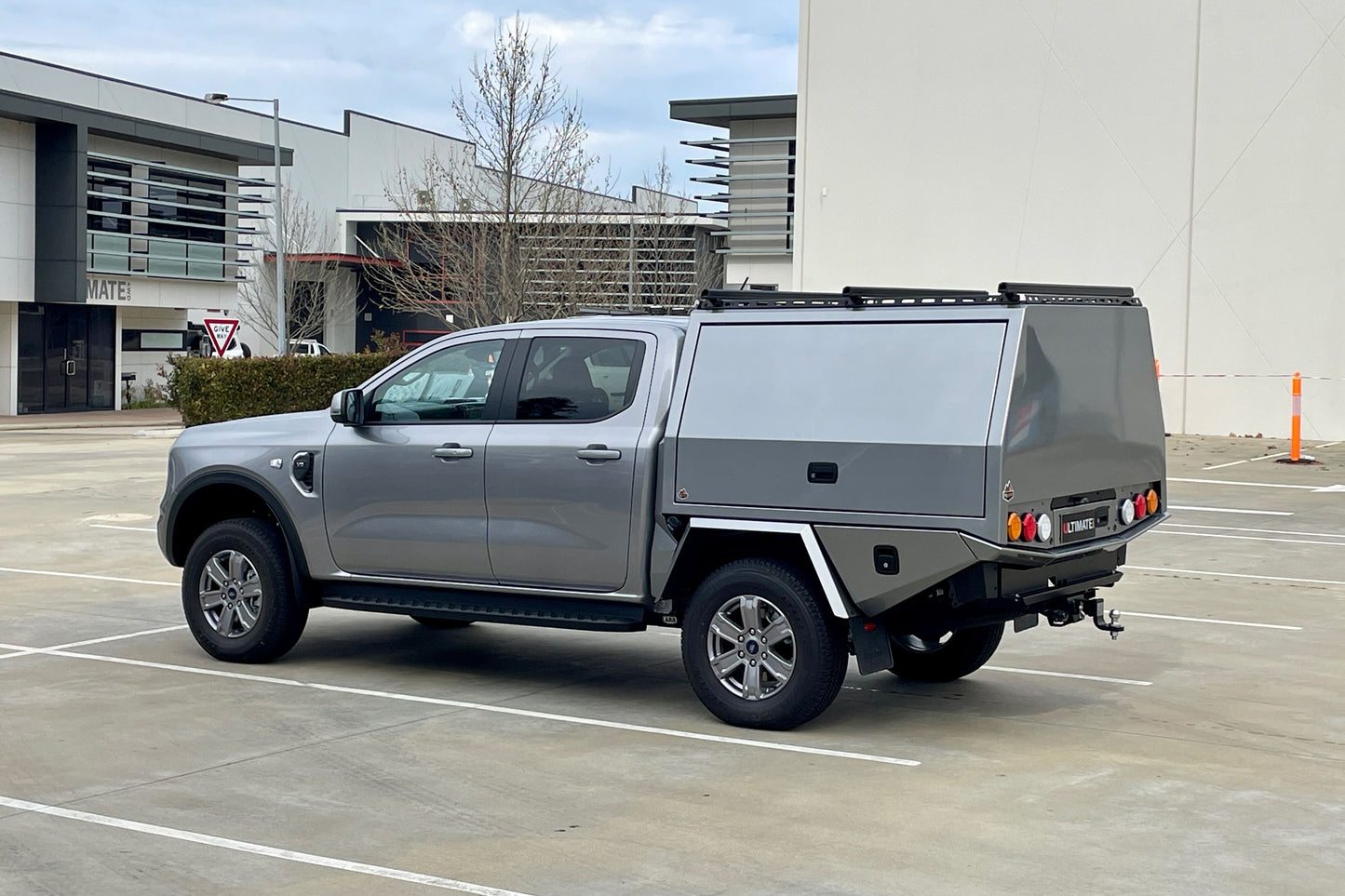

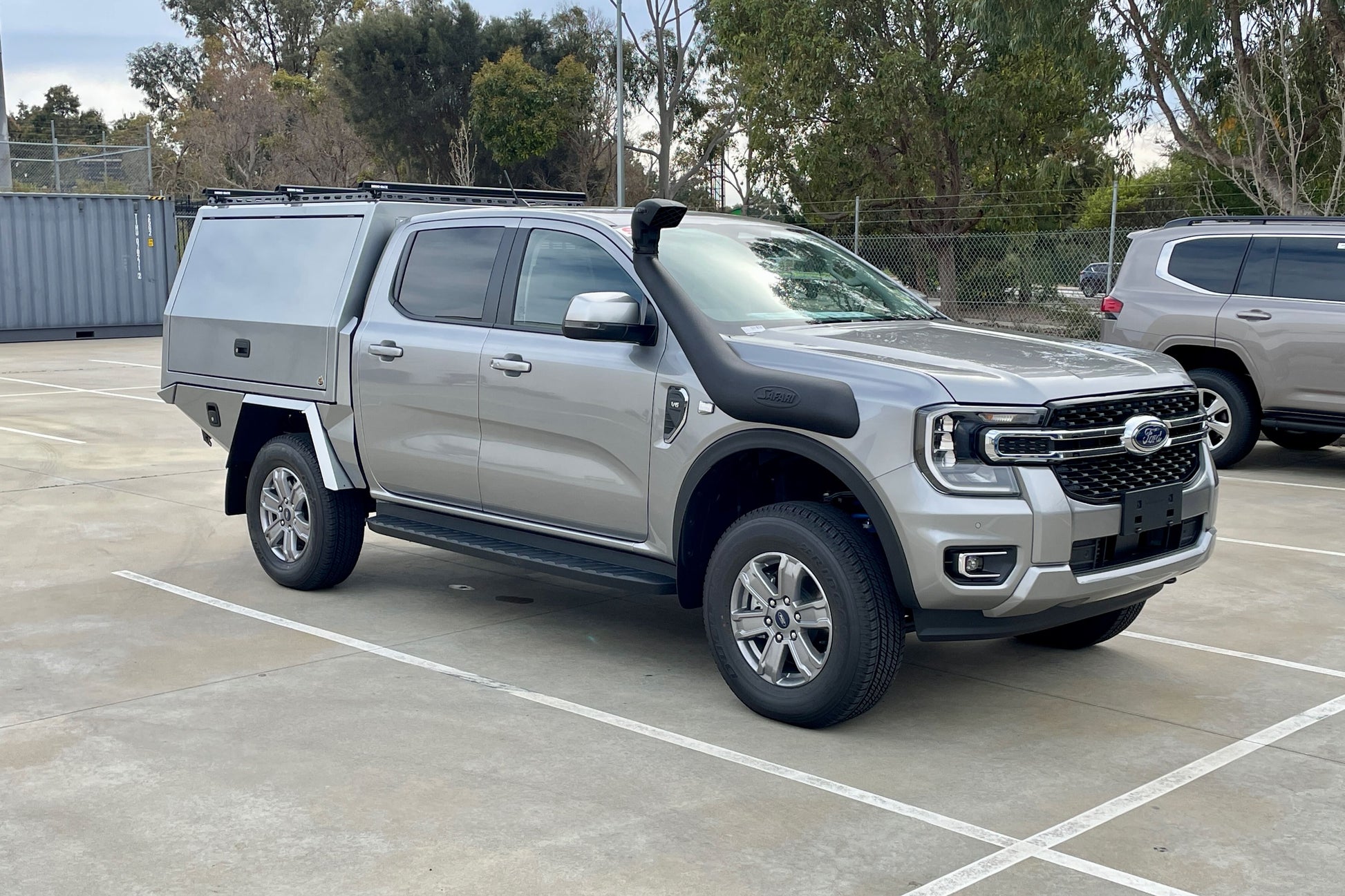

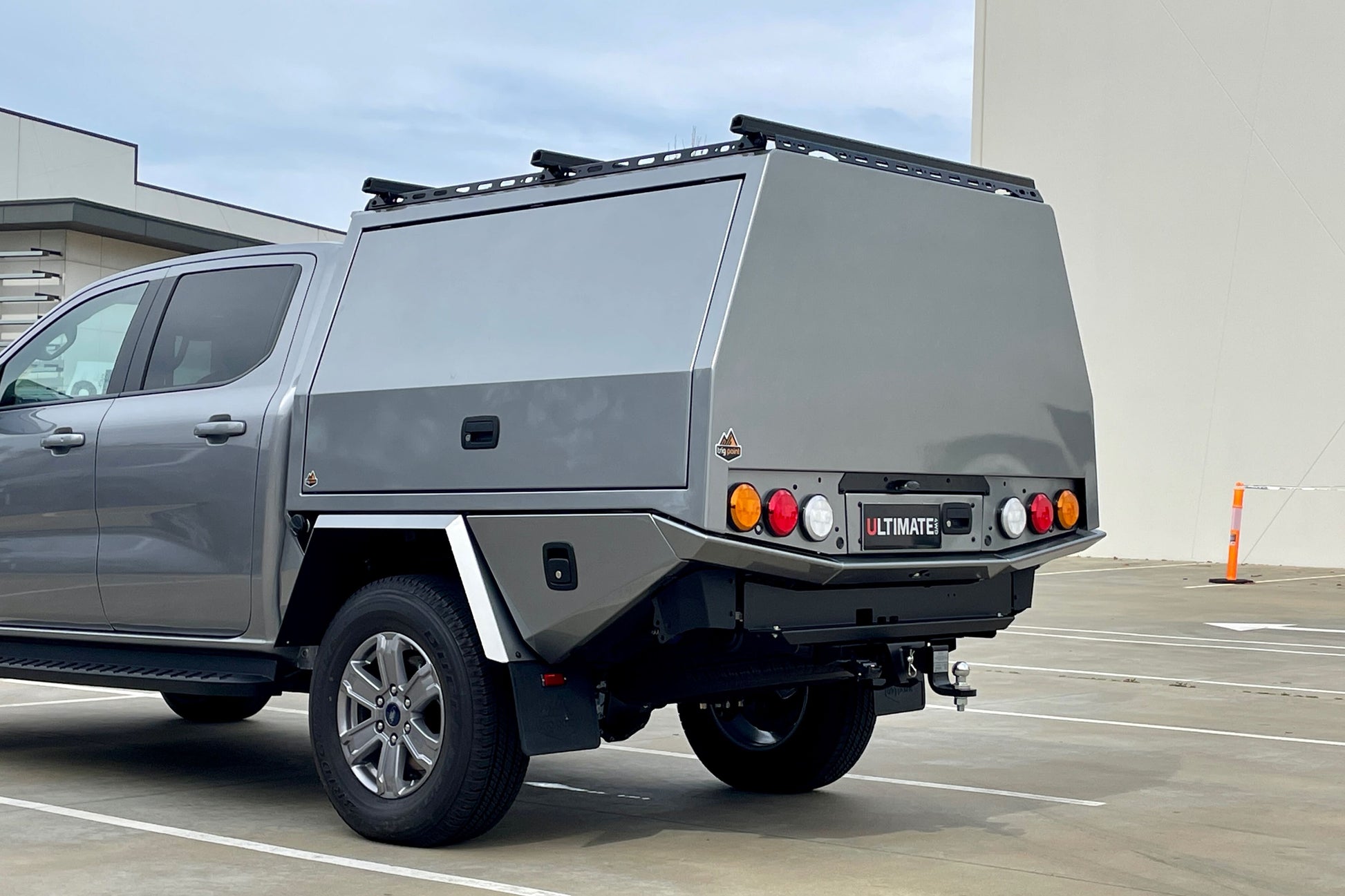

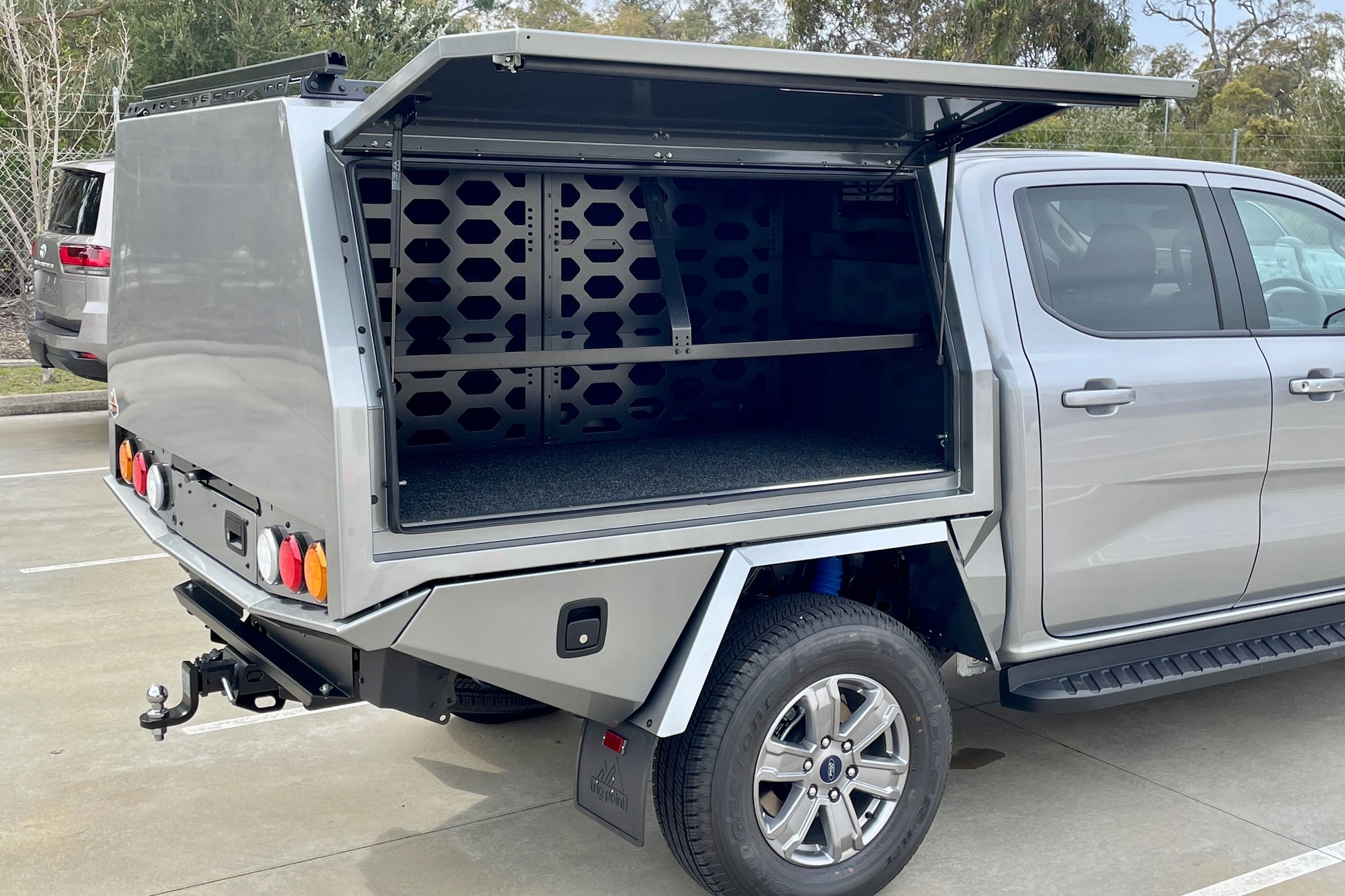

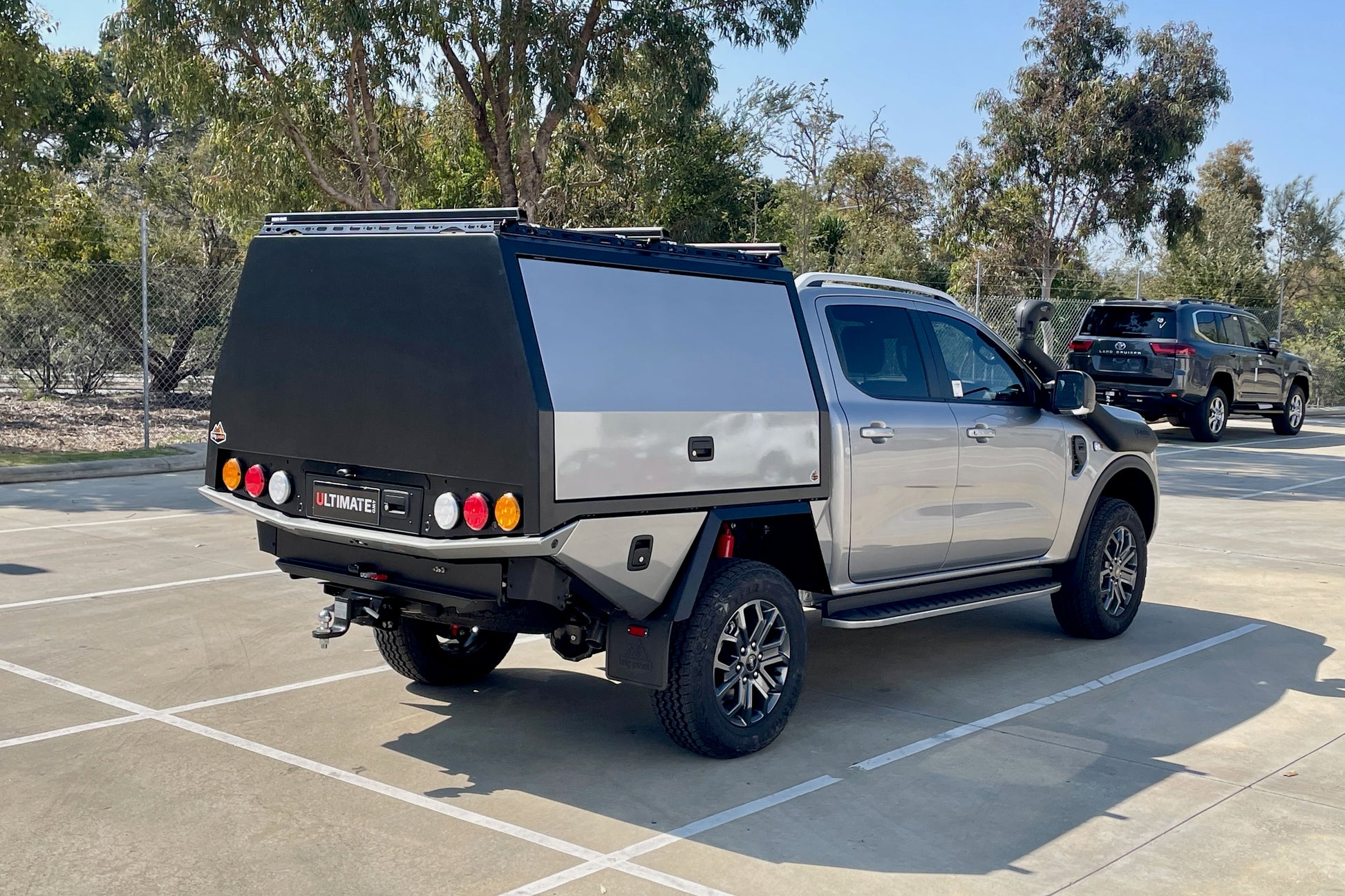

Trig Point Chassis Mount Canopy
The Trig Point chassis mounted canopy offers the perfect balance of strength, storage, and serviceability for touring and commercial use. Built on a robust galvanised steel base frame with aluminium panels, it delivers the durability required for serious off road travel while remaining light enough for optimal GVM management. The canopy features central locking doors, integrated LED lighting, and pre configured mounts for internal and external accessories.
Dual Cab Dimensions: 1700mm long, 1865mm wide | Weight: 290kg
Extra Cab Dimensions: 1990mm long, 1865mm wide | Weight: 320kg
Optional Trig Point Accessories
To suit your travel needs and vehicle layout, a range of factory compatible accessories can be fitted to your Trig Point canopy:
-
Water Tank: Integrated into the canopy base for space saving and weight balance.
-
12V Water Pump Kit: Provides pressurised water delivery at the flick of a switch, ideal for remote travel or trade use.
-

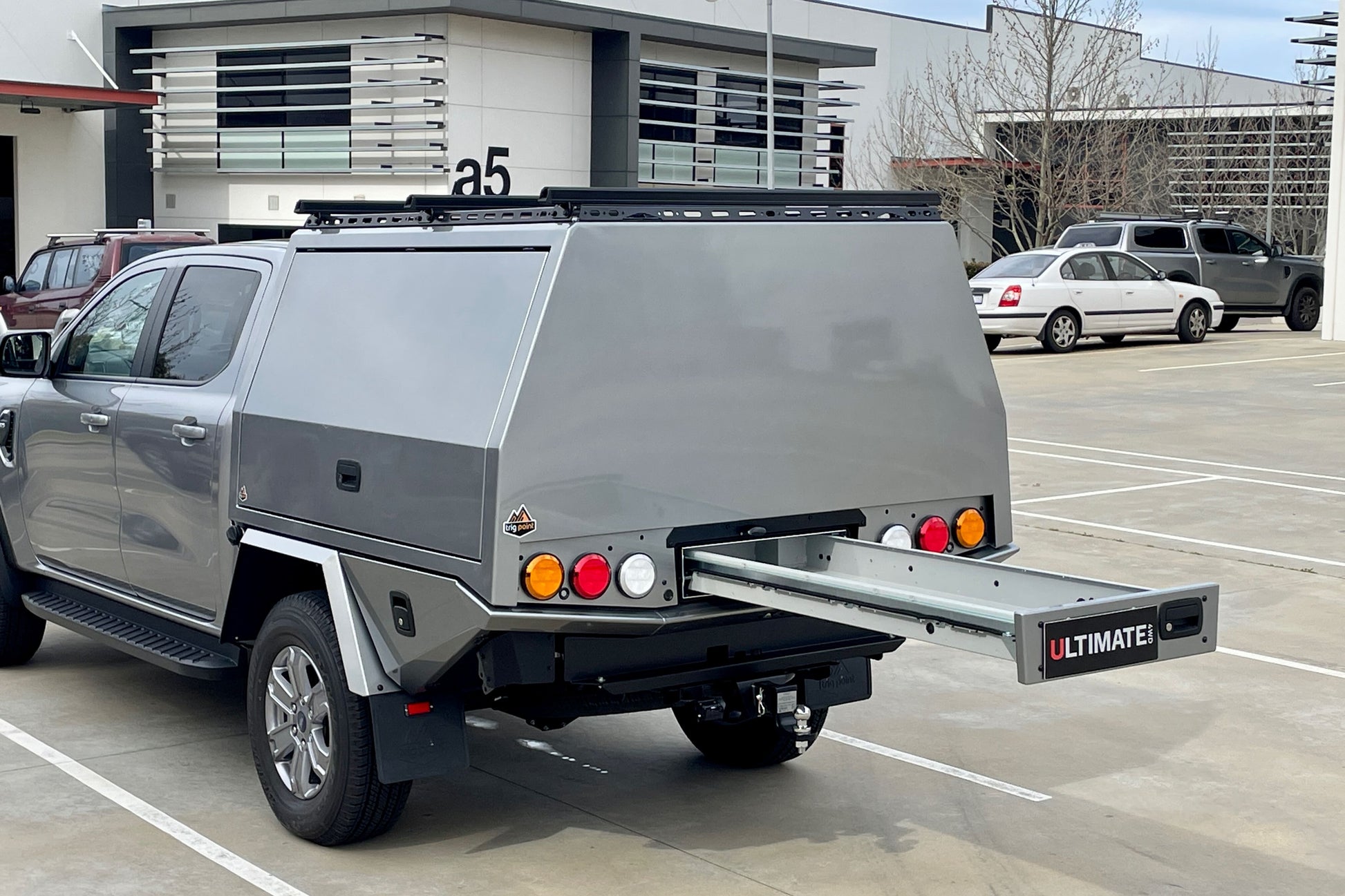

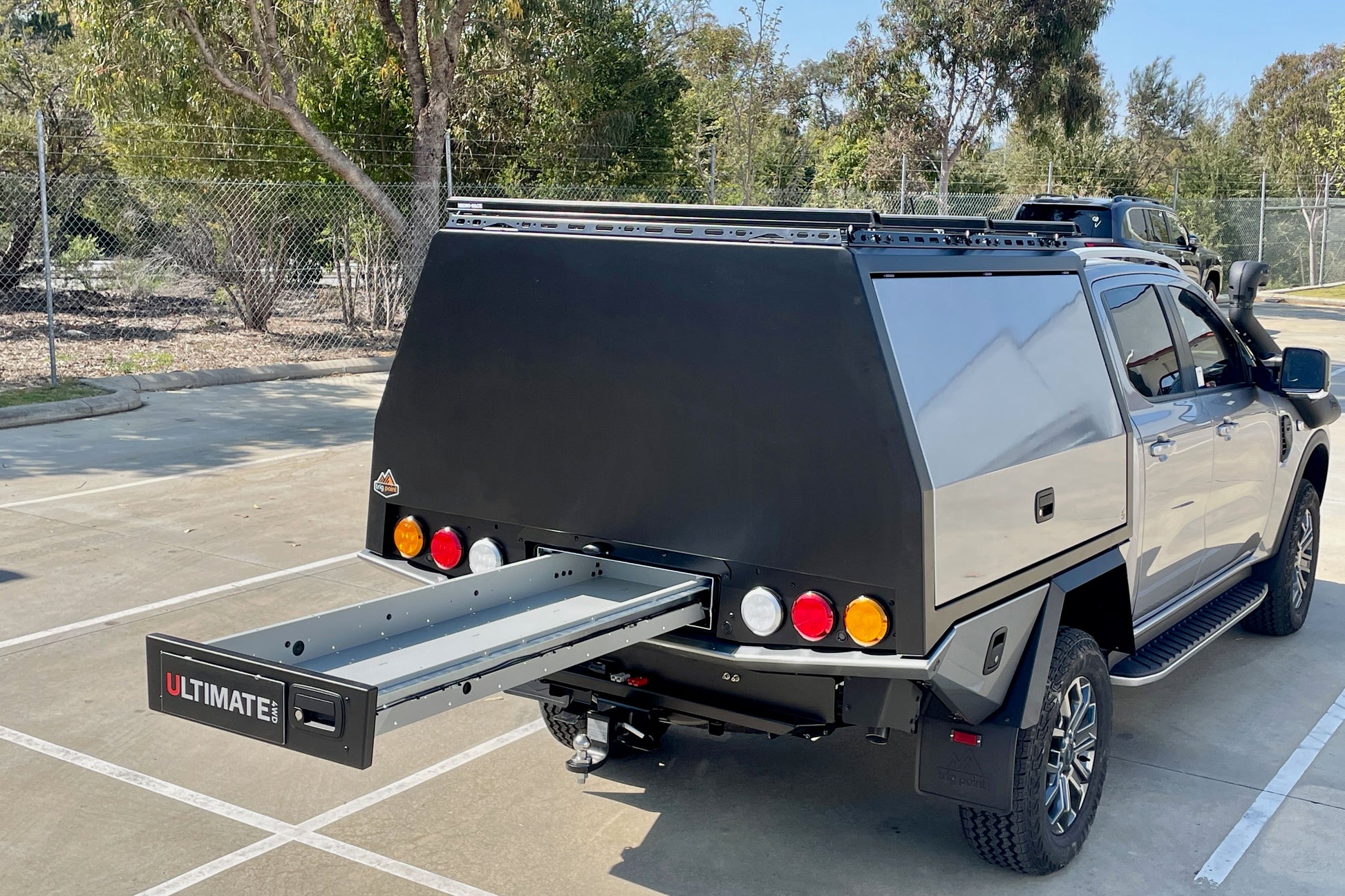

Trundle Drawer: Underbody drawer offering secure, dustproof storage for tools, recovery gear, or cooking equipment.
-
Rear Wall Wheel Carrier: Relocates the spare tyre to the canopy for better clearance and convenience.
-
Rear Wall Dual Jerry Can Holder: Secure storage for fuel or water, ideal for extended touring or remote work.
-
Flush-Mount Roof Cross Bars: Discreet, low profile roof storage integration for solar, roof top tent, or additional cargo.
ARB Twin On Board Compressor (Mounted in Canopy Toolbox)
We mount the ARB twin on board air compressor inside the Trig Point canopy’s toolbox for easy access and protection from the elements. This setup delivers reliable, high output compressed air for tyre inflation, air tools, or clean up — an essential inclusion for serious off road setups.
Bushman Upright Fridge in Dedicated Trig Point Enclosure
The Bushman upright fridge offers efficient, upright access in a compact footprint, perfectly suited to canopy fit outs. Housed in a custom Trig Point enclosure, it maximises available space while keeping food and drinks cold, even in extreme heat. Reliable, efficient and purpose built for travel.
RVSS Premium Aluminium Drawer with Slide-Out Table
Built from lightweight aluminium, this RV Storage Solutions drawer system offers secure storage and a smooth-sliding table integrated into the drawer face. Perfect for meal prep, tool use or remote work, the table stows away cleanly and deploys instantly when needed — a smart dual purpose feature for any canopy build.
Ultimate 4WD Custom Canopy Electrical System
Our custom canopy electrical systems are engineered for serious touring and off grid capability. Professionally installed in a custom aluminium enclosure tailored to fit the Trig Point canopy, this setup is compact, efficient, and easy to use. It includes:
-
Redarc BCDC1250R: 50A DC-DC charger for rapid auxiliary battery charging from the alternator and solar.
-
Redarc Smart Battery Monitor: Live voltage and current monitoring to track usage and charge levels.
-
Redarc Rogue Power Distribution Module: Fuse protected, central power management system with clean wiring and future expandability.
-
Redarc TVMS RedVision Screen: Central screen control of lighting, water pump, fridge, and system diagnostics from inside the canopy.
-
Redarc 2000W Pure Sine Wave Inverter: Run 240V appliances including power tools, laptops, or coffee machines.
-
Custom 200Ah or 310Ah Lithium Battery: Lightweight, high capacity power storage with rapid recharge and deep cycle support.
This system provides dependable energy for extended travel and trades, with professional finish and fully serviceable design.
